Removing A-Pillar Trim Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Removing A-pillar trim panel (lower part)

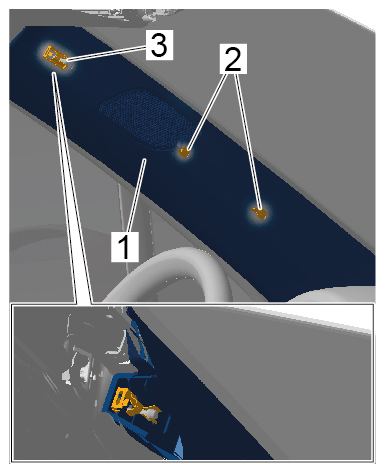

Loosen A-pillar trim panel -1- in the upper area until retaining clip -2- is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar trim panel

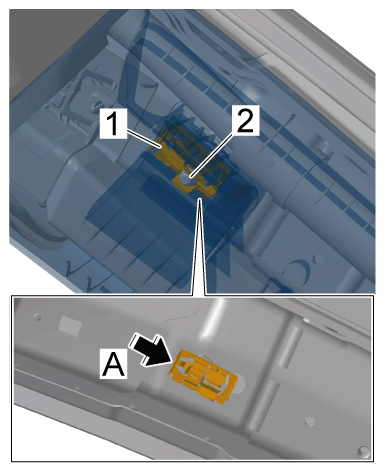

Move retaining clip -1- using a suitable tool -Arrow A- until bolt -2- releases retaining clip -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip on A-pillar trim panel

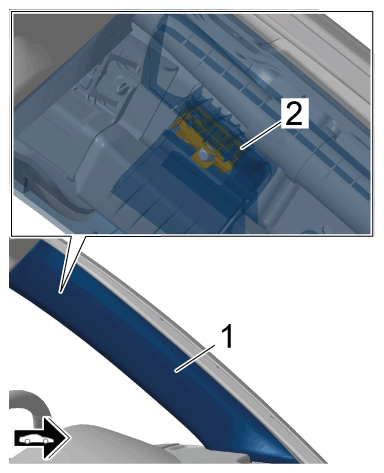

Unclip A-pillar trim panel -1- at fixing clips -2- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar trim panel
