Installing A-Pillar Trim Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check fixing clips, retaining clips and expanding clips for damage and replace them if necessary.

Check that all fixing clips, retaining clips and expanding clips are fitted at the correct position.

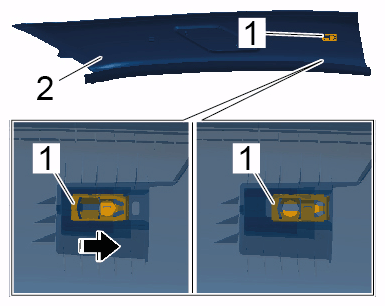

Move retaining clip -1- on A-pillar trim panel -2- as far as it will go -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip on A-pillar trim panel

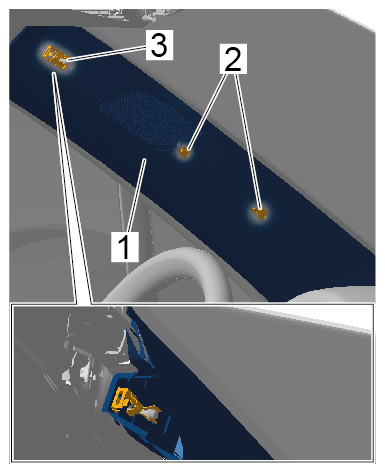

Fit and clip in A-pillar trim panel -1- in the cut-out using retaining clip -3- and fixing clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar trim panel
