Removing A-Pillar Trim Panel (Lower Part)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Driver's side only:

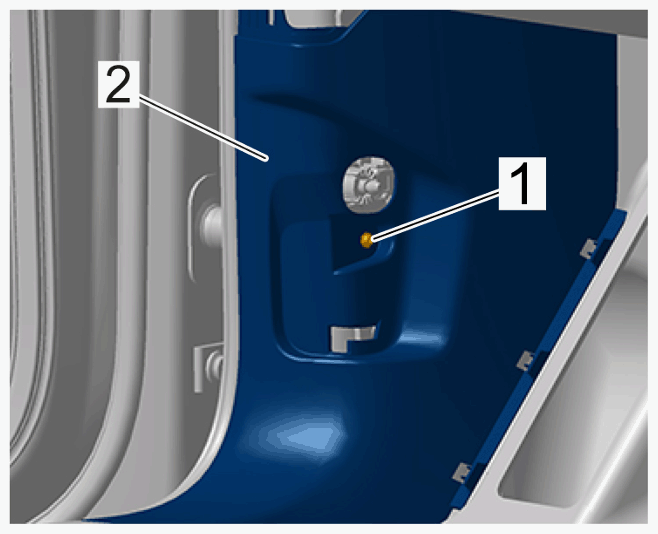

  1. Unscrew screw -1-  .
    G15240283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

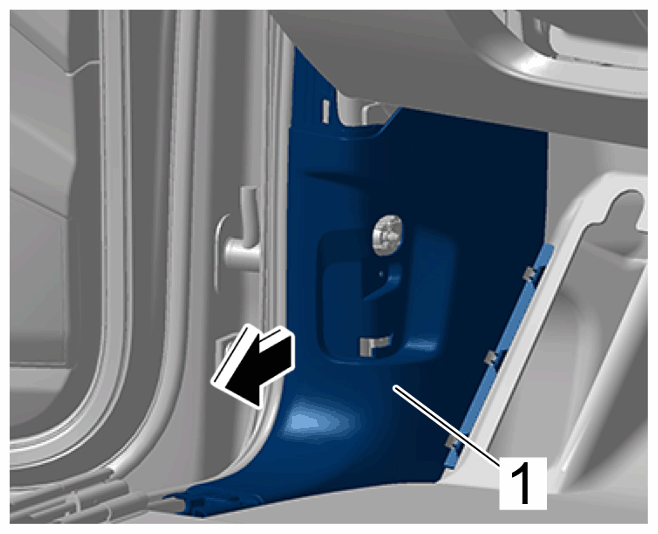

  2. Unclip A-pillar trim panel (lower pat) -1-  by pulling it to the rear -Arrow-  and remove it.
    G15240284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    A-pillar trim panel (lower part)
