Removing Centre Floor Covering
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

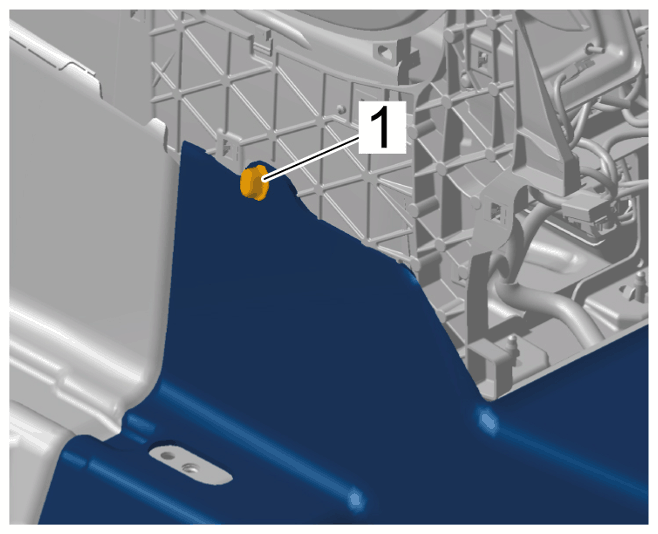

- Unclip fastening plug -1-
at the centre console.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening plug
- Guide out and lift up centre floor covering in the rear area.

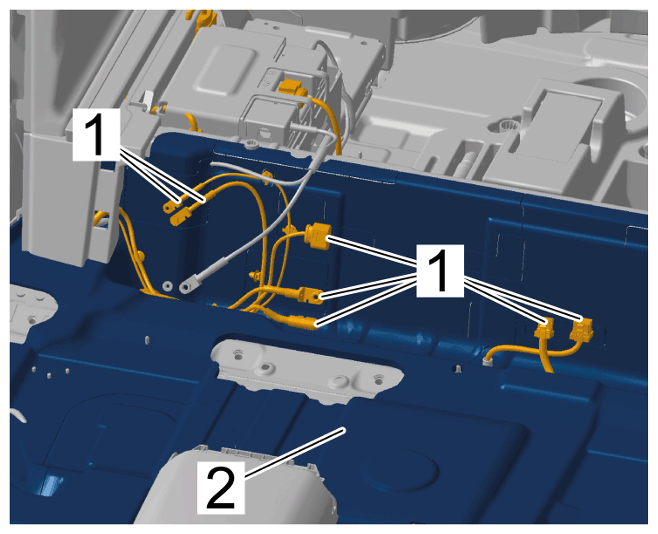

- Guide out electric lines -1-
at the centre floor covering -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric lines
- Pull centre floor covering -2-
forward and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Centre floor covering
