Removing Footrest

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

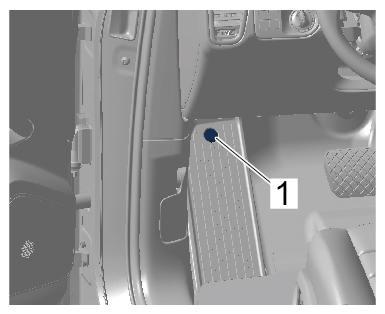

  1. Unclip cap -1-  .
    G15240262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cap

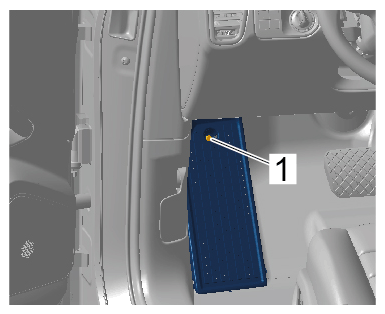

  2. Unscrew screw -1-  .
    G15240263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

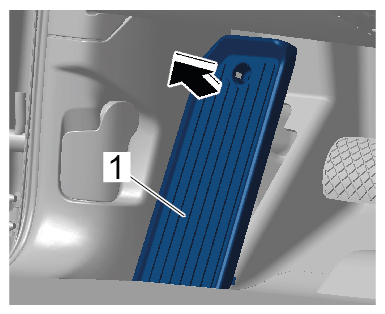

  3. Remove footrest -1-  (-Arrow-  ).
    G15240264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Footrest
