Removing Dashboard Cover (On Passenger's Side)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen dashboard cover (on passenger's side) -1-  .

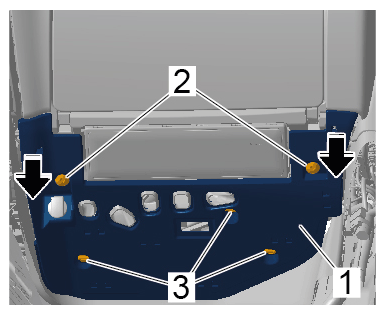

    G15240252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dashboard cover (passenger's side)

    1. 1.1  Unscrew and remove screws -2-  .
    2. 1.2  Unscrew plastic screws -3-  by hand.
    3. 1.3  Unclip dashboard cover (on passenger's side) -1-  (-Arrows-  ).
  2. Remove dashboard cover (on passenger's side).

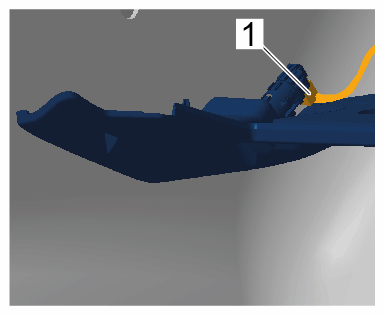

    G15240253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    1. 2.1  Remove dashboard cover (on passenger's side) by pulling it downwards until the electric plug connection -1-  is accessible.
    2. 2.2  Release and unplug electric plug connection -1-  .
    3. 2.3  Remove dashboard cover (on passenger's side).
