Removing Dashboard Cover (Driver's Side)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew and remove screws -1-  .
    G15240245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  2. Unclip dashboard cover (on driver's side) -2-  (-Arrows-  ) until the OBD plug socket is accessible.
    G15240246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dashboard cover (on driver's side)

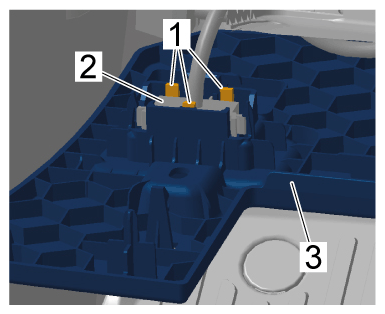

  3. Release retaining lugs -1-  and pull OBD plug socket -2-  out of the dashboard cover (on driver's side) -3-  .
    G15240247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    OBD plug socket

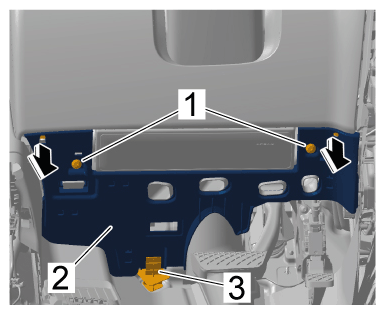

  4. Pull dashboard cover (on driver's side) -2-  out of the retaining clip -3-  .
    G15240248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Retaining clip
