Installing Dashboard Cover (Driver's Side)
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

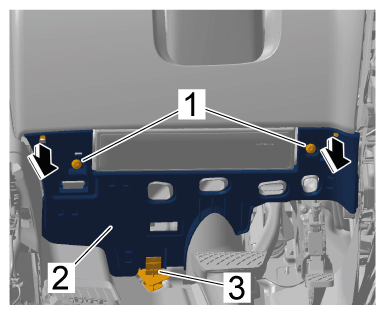

- Installation is performed in reverse order. Pay particular attention to the following: Slide dashboard cover (on driver's side) -2-
into the retaining clip -3-
.
Tighten screw -1-
on dashboard cover (on driver's side) -2-
to > Tightening torque 3 Nm (2 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Dashboard cover (on driver's side)
