Removing Trim Panel For Dashboard (Passenger's Side)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

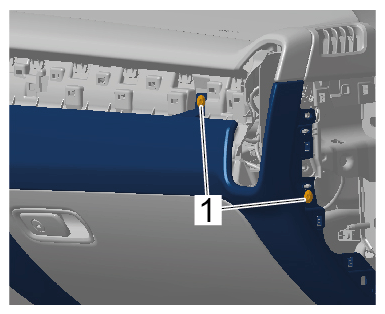

  1. Unscrew fastening screws -1-  .
    G15240241Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

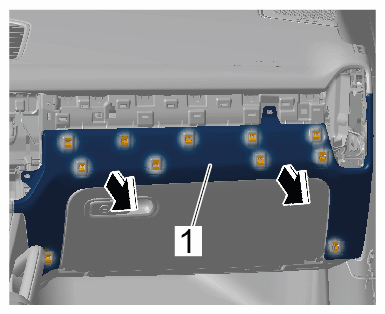

  2. Unclip trim panel for dashboard (passenger's side) -1-  (-Arrows-  ) and pull it out.
    G15240242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for dashboard (passenger's side)
