Removing Dashboard Trim Panel (On Passenger's Side)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen dashboard trim panel (on passenger's side).

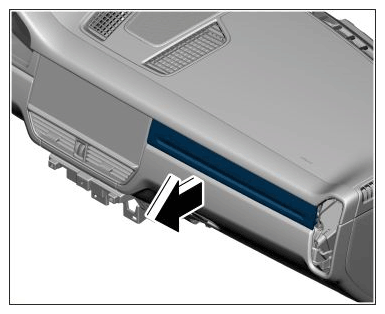

    G15240208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dashboard trim panel

    1. 1.1  Mark the position of the locking hook on the dashboard trim panel (on passenger's side) with a strip of adhesive tape.
    2. 1.2  Carefully detach dashboard trim panel (on passenger's side) from right to left using a plastic wedge.
    3. 1.3  Fit dashboard trim panel (on passenger's side) slightly against the retaining clips without engaging them.

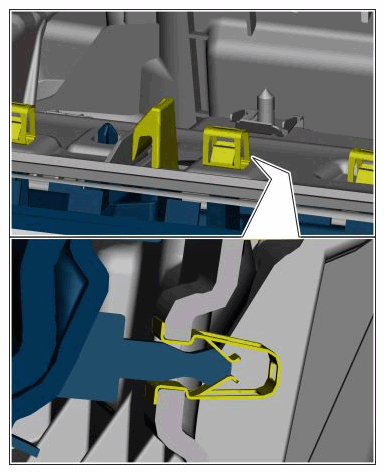

    G15240209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Safety hooks

  2. Release locking hook.

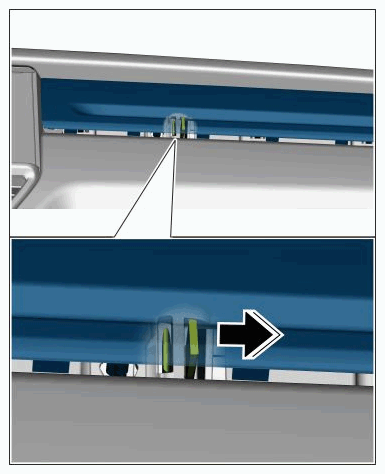

    G15240210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Safety hooks

    1. 2.1  Insert a screwdriver through the gap at the marked position. Release locking hook -Arrow-  .
  3. Remove dashboard trim panel (on passenger's side).
