Removing Dashboard Trim Panels (On Driver's Side)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Too much force can damage the component.

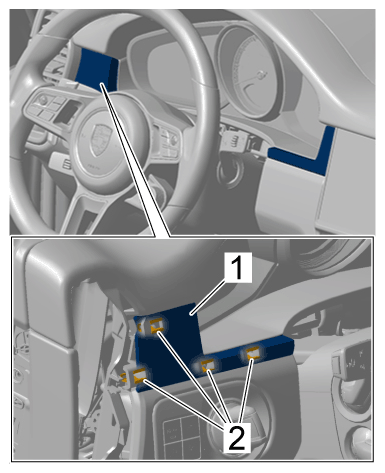

Carefully unclip left dashboard trim panel (on driver's side) -1- using > VAS 6845 - scraper set from retaining clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left dashboard trim panel (on driver's side)

Information

Too much force can damage the component.

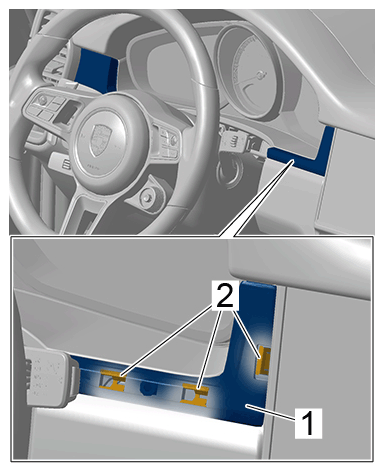

Carefully unclip right dashboard trim panel (on driver's side) -1- using > VAS 6845 - scraper set from retaining clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right dashboard trim panel (on driver's side)
