Removing Side Trim Panel For Rear Luggage Compartment

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

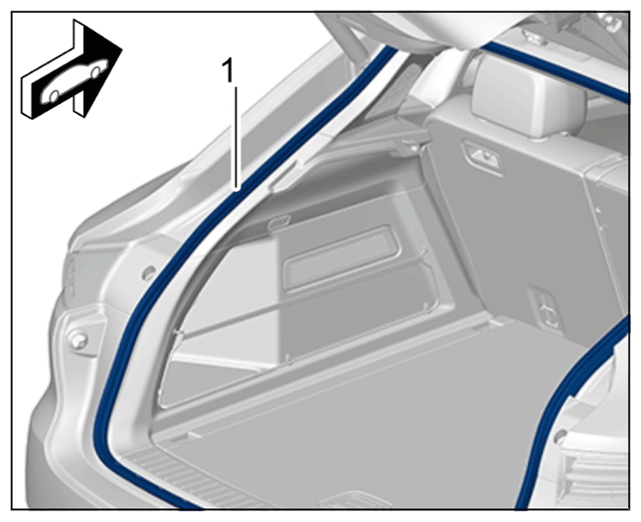

Loosen rear lid seal -1- in the rear luggage compartment side trim panel area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid seal

Information

Check fixing clips, retaining clips and expanding clips for damage and replace them if necessary.

Check that all fixing clips, retaining clips and expanding clips are fitted at the correct position.

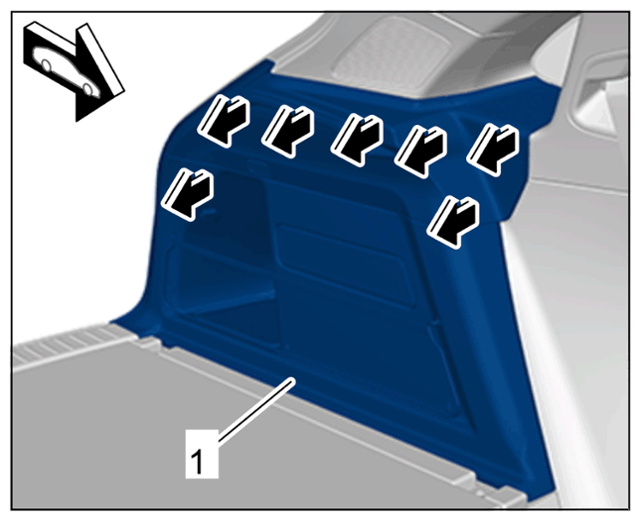

Unclip side trim panel for rear luggage compartment -1- at the D-pillar trim panel and C-pillar trim panel in direction of -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear luggage compartment side trim panel

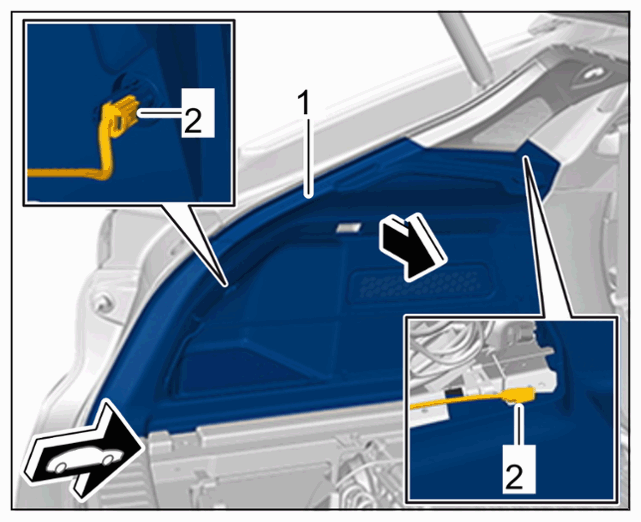

Carefully fold side trim panel for rear luggage compartment -1- over in direction of -Arrow- until the electric plug connections -2- are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

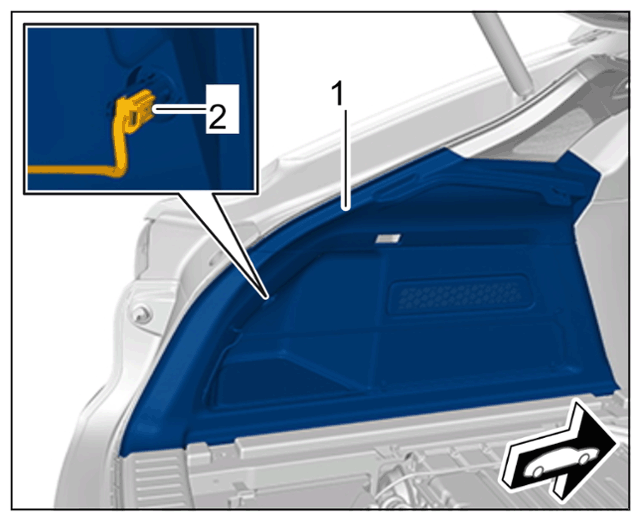

Only for rear luggage compartment side trim panel at the left -1- :
Release and disconnect electric plug connection for electrical socket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for electrical socket

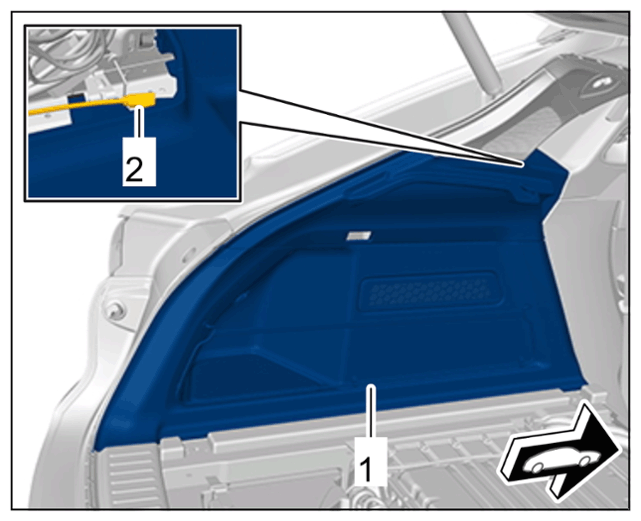

Only for rear luggage compartment side trim panel at the left -1- :
Release and disconnect electric plug connection for antenna -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for antenna

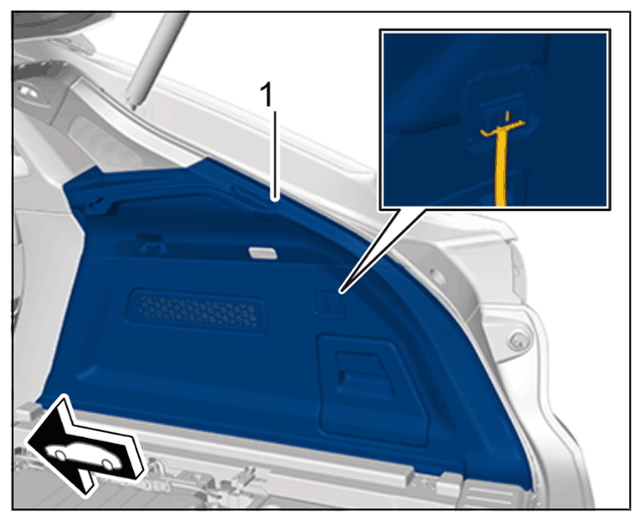

Only for side trim panel for rear luggage compartment at the right -1- :
Release and disconnect electric plug connection for switch for trailer hitch or levelling system -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for switch for trailer hitch or levelling system

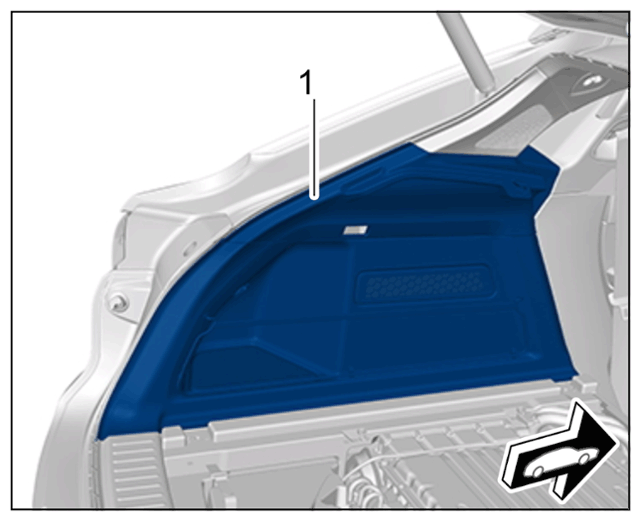

Remove rear luggage compartment side trim panel -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear luggage compartment side trim panel
