Installing Rear Lid Seal
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

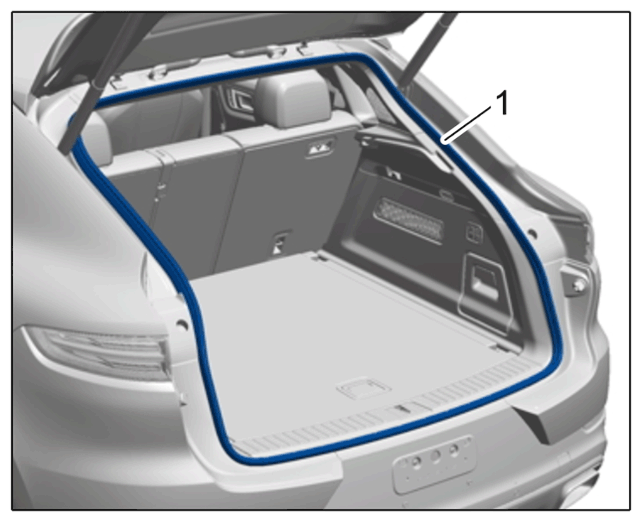

- Install rear lid seal -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear lid seal
Position gap in the rear lid seal -1-
so that it is centred at the top.
Position vent holes in the rear lid seal -1-
outwards.
Press rear lid seal -1-
onto the body.
Press on rear lid seal -1-
at the rounded areas using > 9513 - puller
.
