Removing Rear Lid Hinge
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

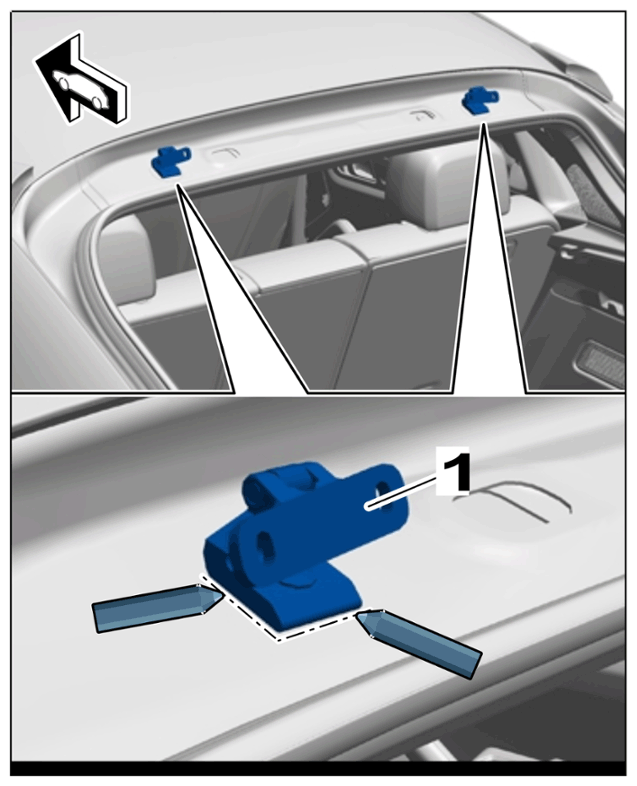

- Mark installation position of rear lid hinges -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installation position of rear lid hinge

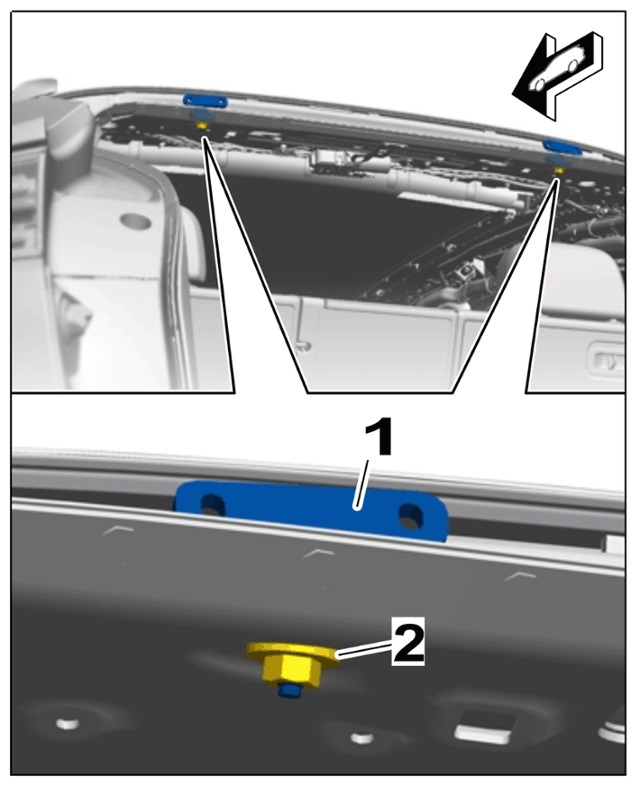

- Remove rear lid hinges -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear lid hinges
Unscrew nuts on rear lid hinges -2-
.
Remove rear lid hinges -1-
.
