Installing Rear Lid Hinge
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

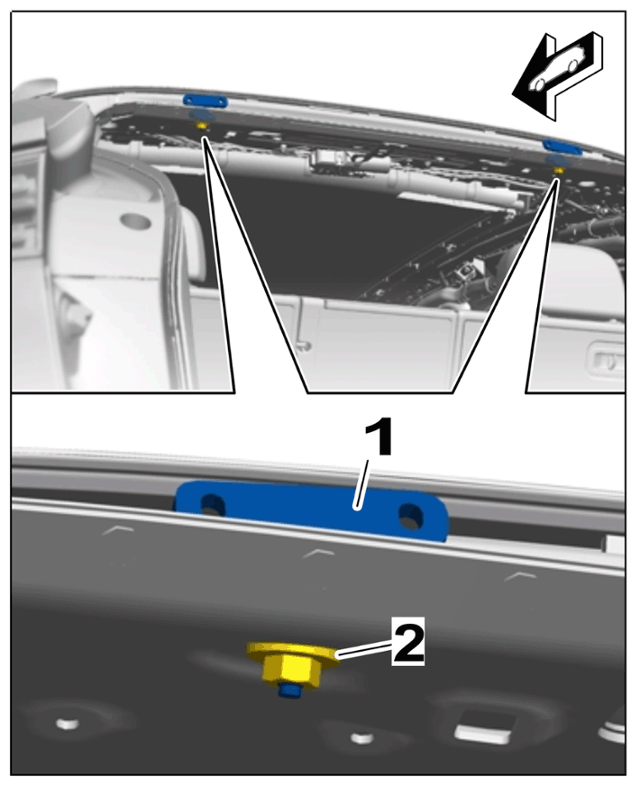

- Install rear lid hinges -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear lid hinge
Align rear lid hinges -1-
with the markings.
Screw on nuts for rear lid hinges -2-
and tighten to > Tightening torque 23 Nm (17 ftlb.)
↓.
Remove the markings you made earlier.
