Disassembling Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

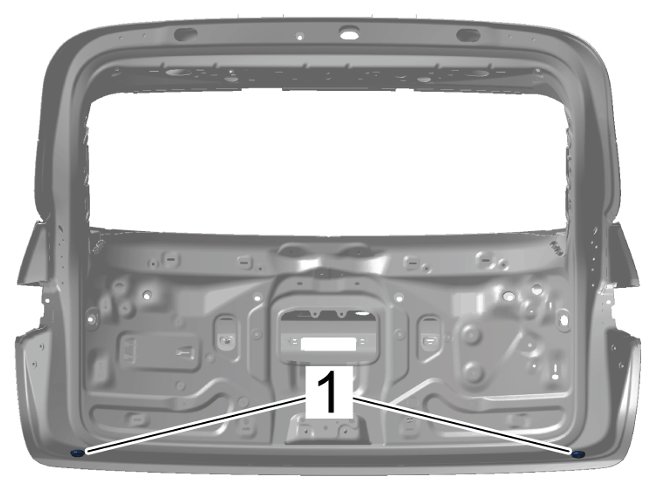

Unclip covers -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Covers

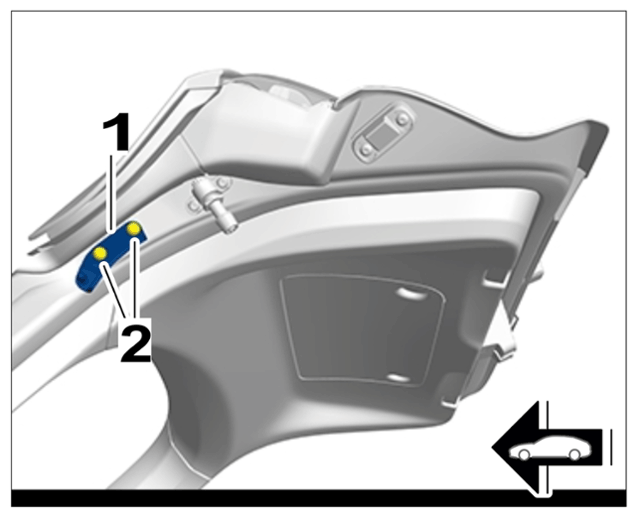

Unscrew screws -1- and remove guide wedge -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for guide wedge

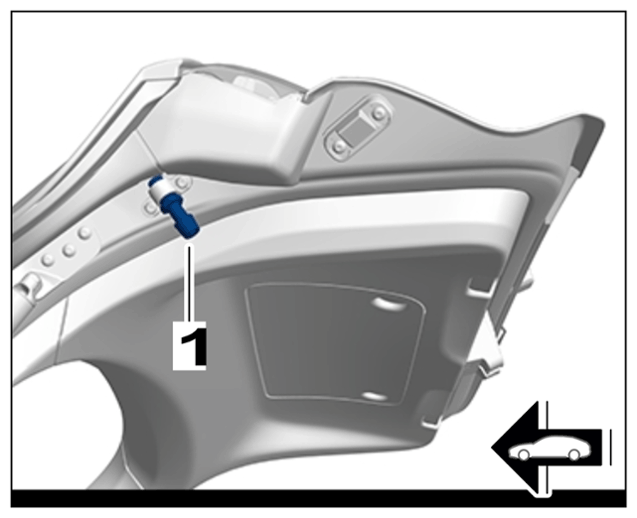

Unscrew adjusting buffer -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting pads

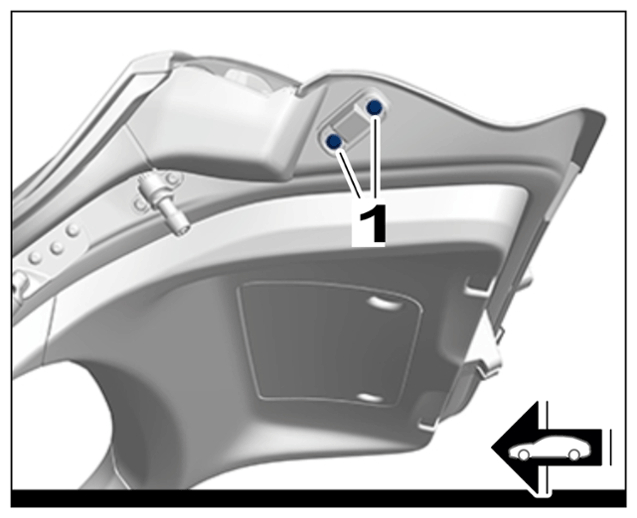

Remove ball hitch -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball hitch

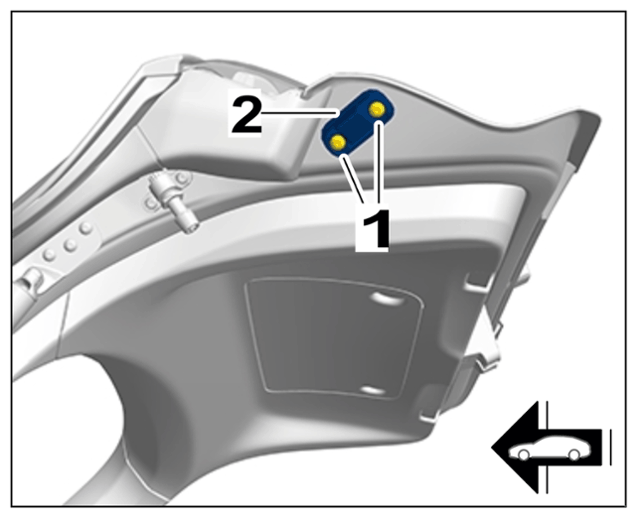

Unscrew and remove screws -2- .

Remove ball hitch -1- .

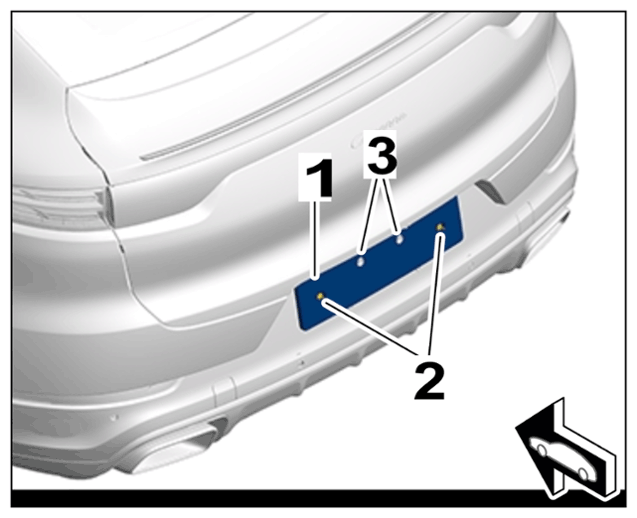

Remove number plate cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover

Unclip expansion rivets -2- .

Unscrew and remove screws -3- .

Remove number plate cover -1- .
Remove rubber sleeves -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeves
