Removing Rear Upper Part Of Lid Lock

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Moving components

Danger of limbs being trapped or severed

→ Do not reach into the danger area.
→ Secure the system to prevent it from being activated accidentally.
→ Keep third parties away from the danger area.

Information

When removing the upper part of the lock using a closing aid, first disconnect the plug connection for the power supply.
This prevents the closing aid motor from starting up while you are disconnecting the plug connection/control system.

Switch off ignition and remove remote control.

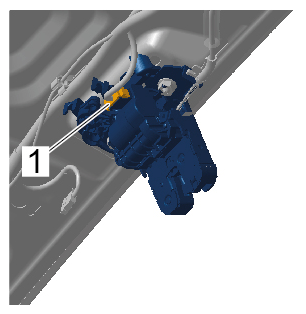

Release and unplug electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

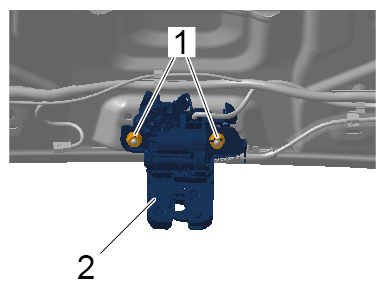

Unscrew fastening nuts -1- and loosen upper part of rear lid lock -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

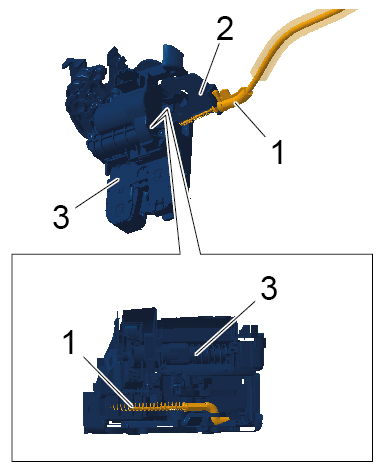

Unclip bowden cable -1- at the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bowden cable
Disengage bowden cable -1- on upper part of rear lid lock -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bowden cable
