Removing Actuating Cylinder For Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Incorrect handling of actuating cylinders

Actuating cylinders can burst
Risk of eye injuries
Risk of bruising

→ The actuating cylinders must be in idle state in order to remove them.
→ Open the lid fully.
→ Ensure the end position of the lid manually.
→ Secure the lid after removing the actuating cylinders to prevent it from closing accidentally.
→ Do not use force when opening the actuating cylinders due to the high internal pressure.

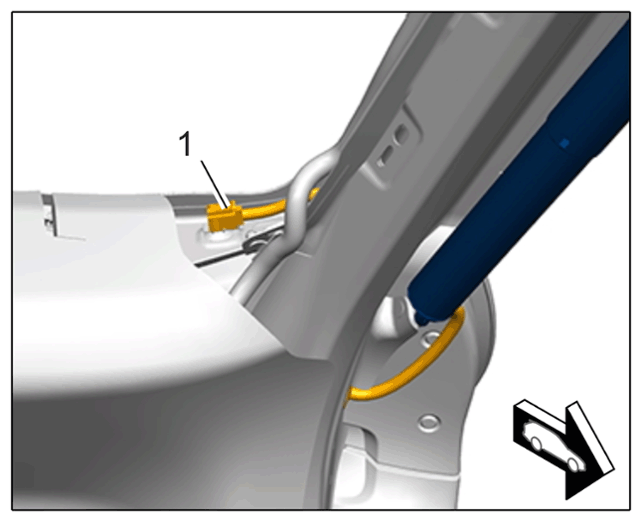

Unlock and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

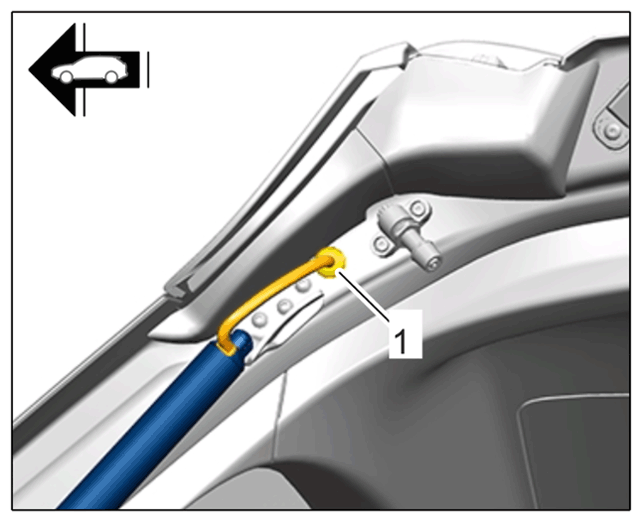

Detach rubber sleeve -1- and guide electric wire harness out of the rear lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeve

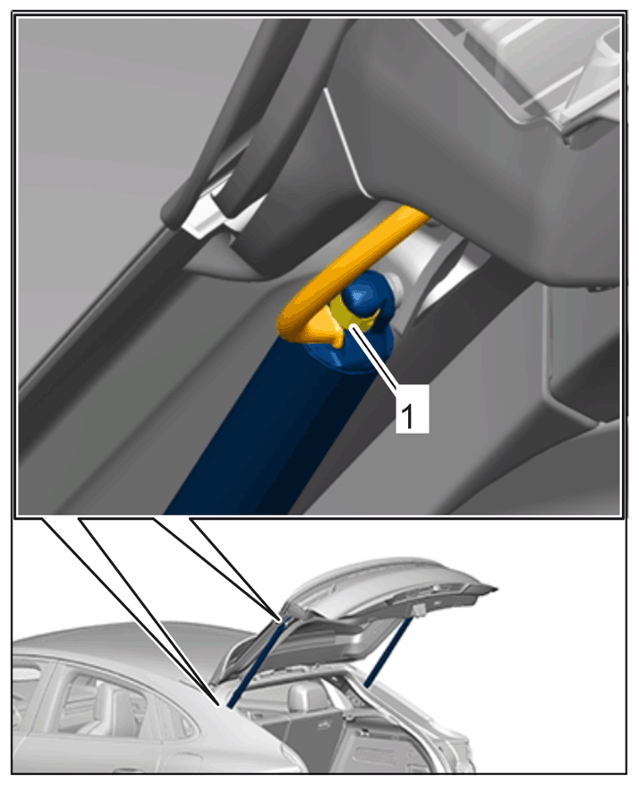

Release safety clips -1- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Safety clips

Information

The help of another person is required to prevent the rear lid from closing accidentally.

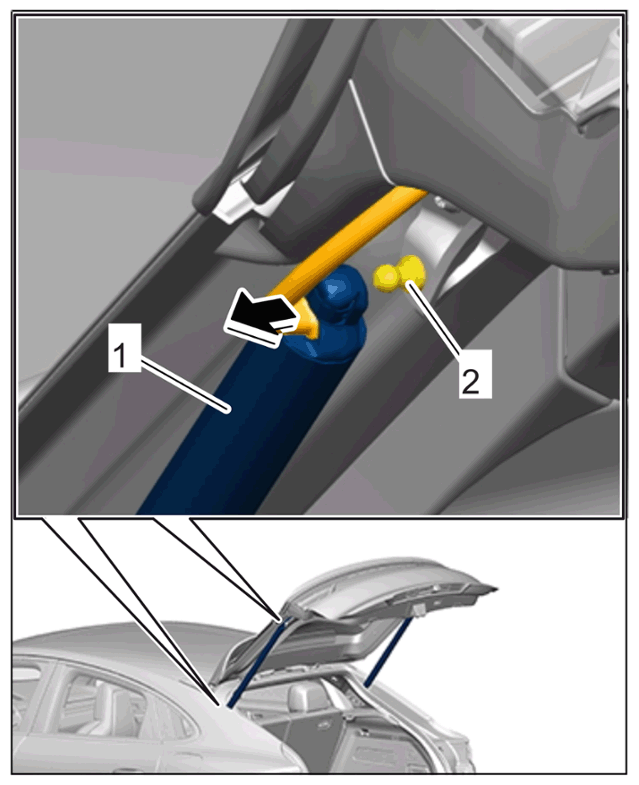

Pull actuating cylinder for rear lid -1- off the ball pin -2-Arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuating cylinder for rear lid
