Emergency Release - Rear

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

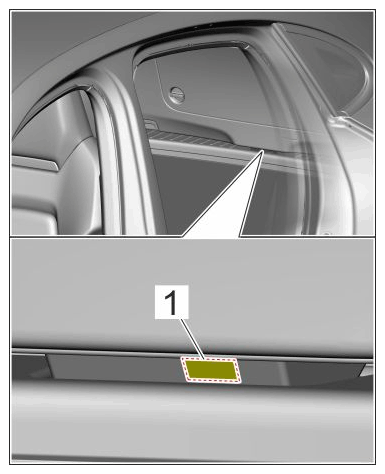

  1. Push trim panel -1-  through.
    G15260979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    Information

    This action will damage the component.

    Replace component.

    Puncture the perforation at the marked position and make an opening.

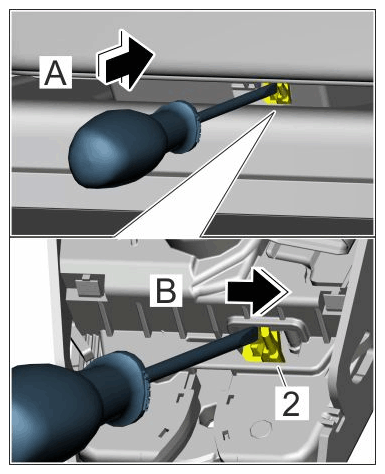

  2. Release lock.
    G15260980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Release

    Insert a screwdriver into the opening -arrow A-  .

    Probe the release -2-  with a screwdriver and engage the screwdriver.

    Actuate release with the screwdriver in direction of arrow -arrow B-  .

    Lock unlocks audibly.

  3. Open the cover from outside.
