Removing Filler Flap (Cap)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following description is shown as an example for the fuel filler flap (cover). All actions are also valid for work on the flap side part (cover). The illustrations are shown as mirror images.

Open the filler flap.

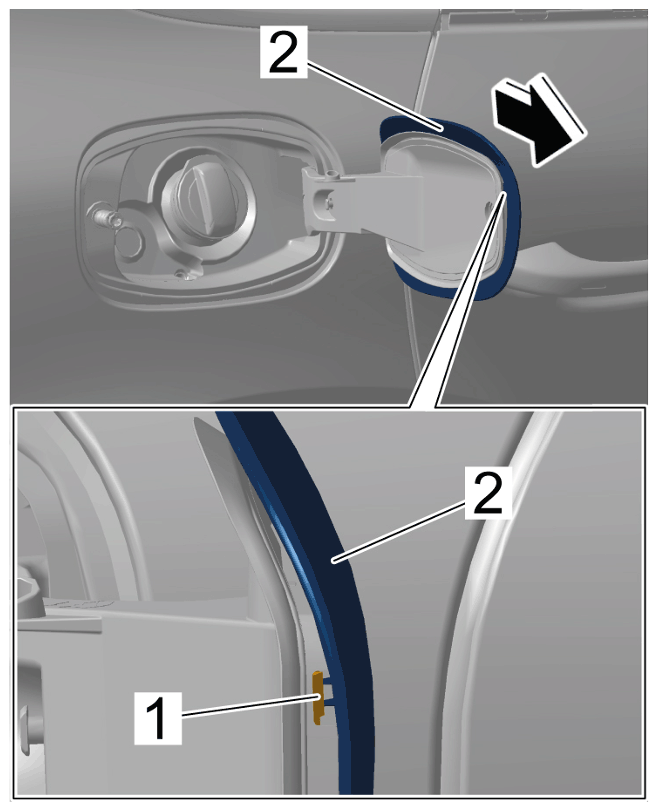

Release catch -1- using a suitable tool and pull off cover -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filler flap (cap)
