Removing Front Lid Seal
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- During removal, the seal must not come into contact with hot engine components or adjacent units. This can cause damage to the seal.
- Pull off front lid seal -1-
towards the engine and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

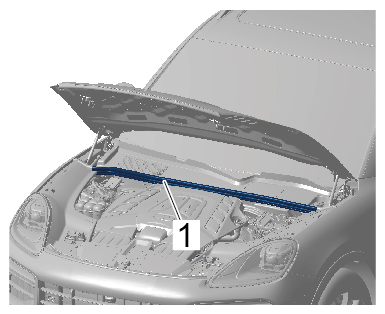

Front lid seal
