Removing Front Lid Hinge

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark position of front lid hinge with respect to the body.
  2. Unscrew fastening screws -1-  and remove front lid hinge -2-  .

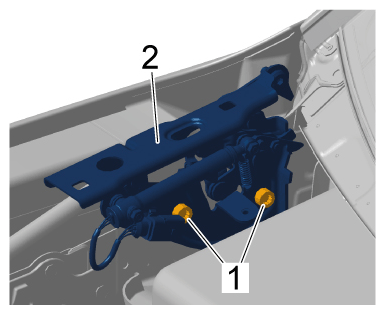

G15260954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge
