Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1

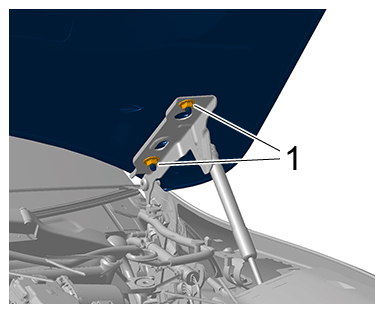

Lid to lid hinge	Item 1	Tightening torque	24 Nm (18 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

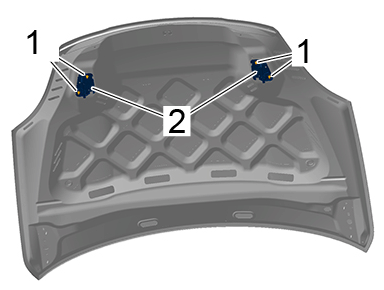

Upper part of lid lock to lid	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of lid lock

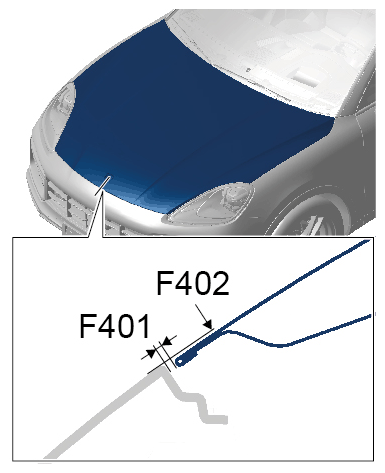

Front apron to front lid (F401)		Gap dimension	2.9 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front apron to front lid (F402)	Offset	Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

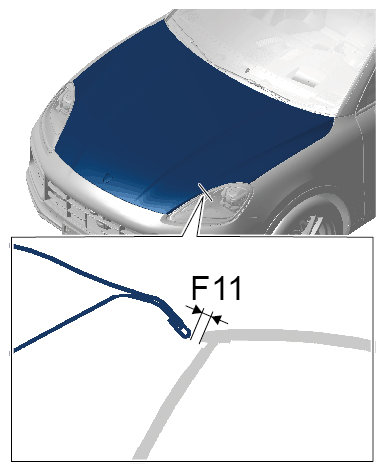

Main headlight to front lid (F11)		Gap dimension	2.9 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

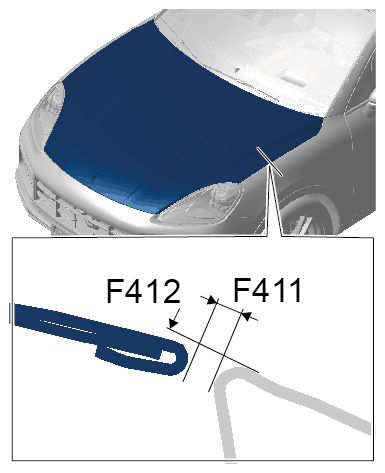

Front lid to wing (F411)		Gap dimension	2.9 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (F412)	Offset	Gap dimension	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
