Installing Front-Seat Headrest

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

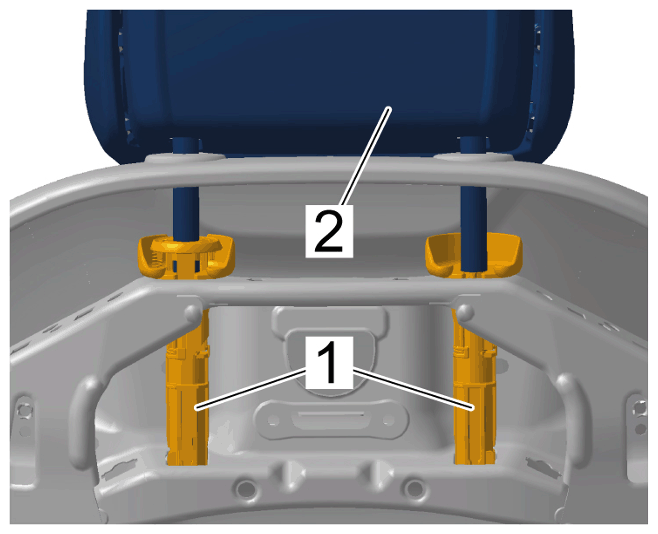

  1. Insert front-seat headrest -2-  into the headrest guides -1-  and push it in until the front-seat headrest -2-  engages.
    G15240511Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-seat headrest
