Removing Motor For Air Cushion

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection -1-  on motor for air cushion -3-  .
    G15240493Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Release hose connection on air line -2-  and pull it off the air cushion motor -3-  .

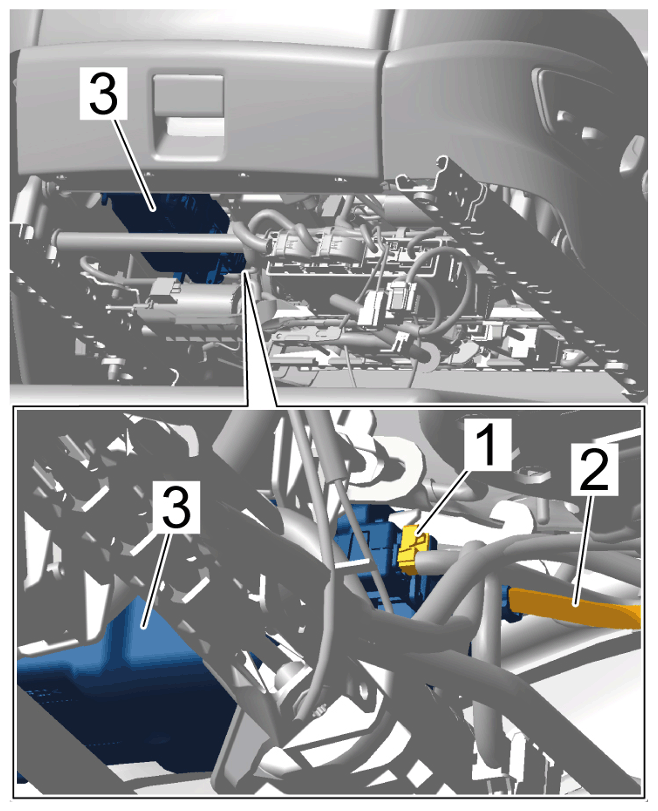

    G15240494Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air line

  3. Remove motor for air cushion -2-  .

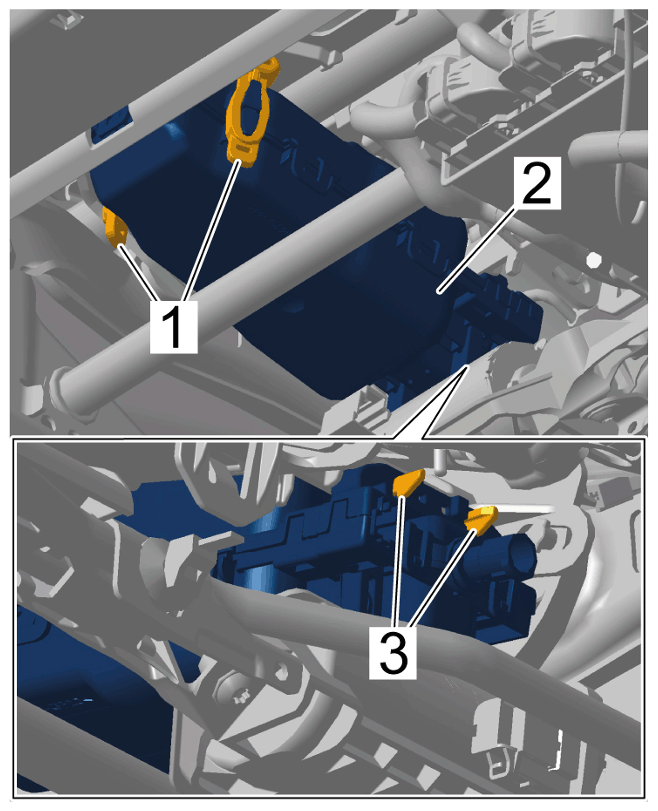

    G15240495Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Motor for air cushion

    1. 3.1 Disengage clips -1-  on motor for air cushion -2-  .
    2. 3.2 Push motor for air cushion -2-  forward and unclip and remove it from the guides -3-  .
