Removing Air Cushion For Backrest

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

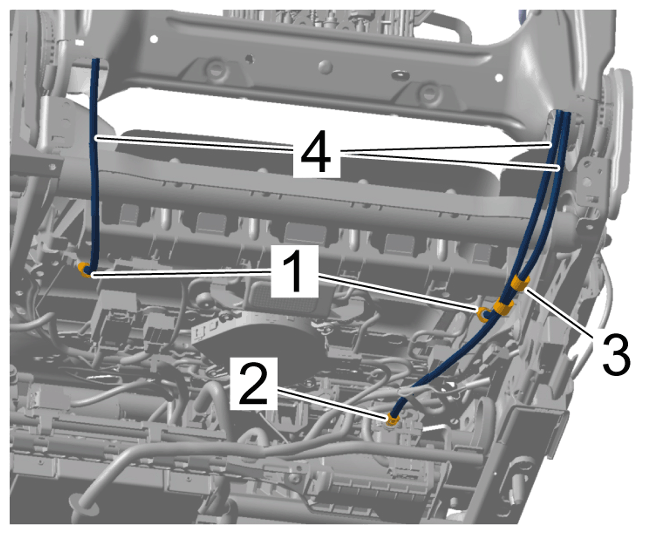

Disconnect air lines -4- under the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air lines
1. 1.1 Release and disconnect hose connections -1- from air cushion for seat.
2. 1.2 Release and disconnect hose connection -2- from motor for air cushion.
3. 1.3 Unclip line bracket -3- at the seat frame.
4. 1.4 Expose air lines -4- towards the rear.
Release and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

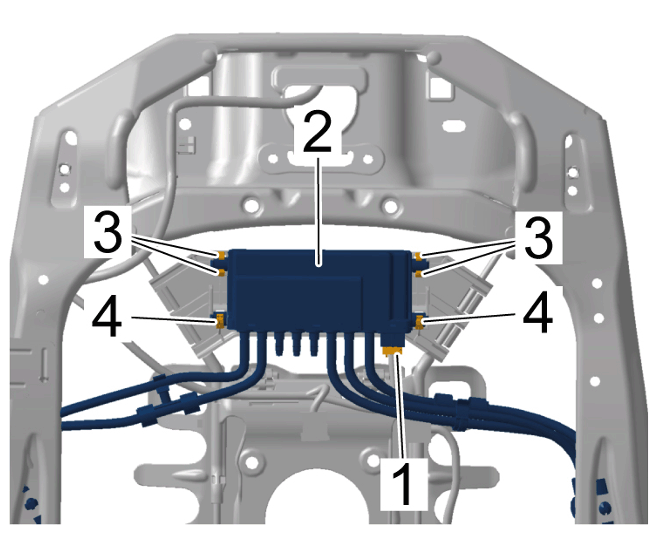

Unclip control valve for air cushion -2- by pulling it to the rear out of the holders -3- and pull it up out of the holders -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control valve for air cushion

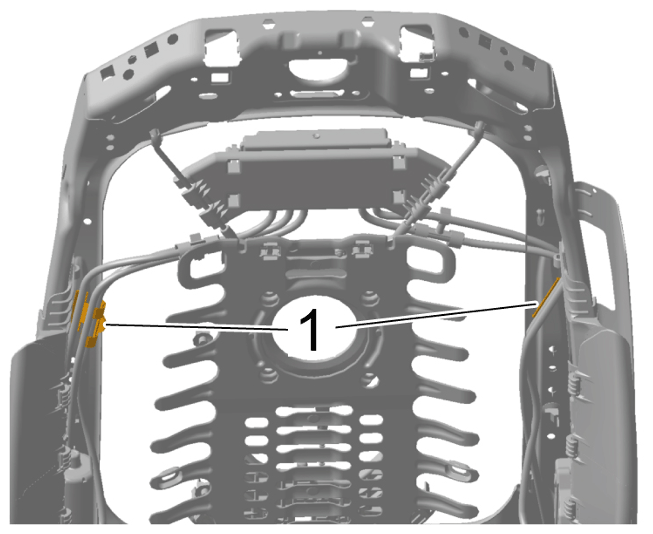

Unclip line bracket -1- at the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket

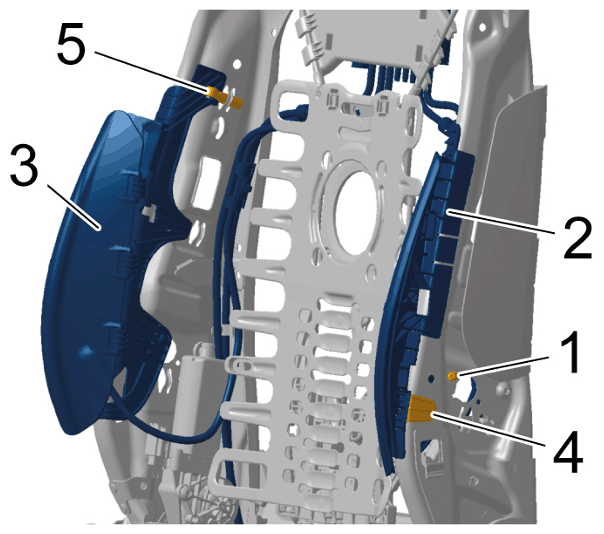

Detach left air cushion for backrest -2- and right air cushion for backrest -3- at the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for backrest
1. 5.1 Unscrew screw -1- on left air cushion for backrest -2- and right air cushion for backrest -3- .
2. 5.2 Release locking lug -4- on left air cushion for backrest -2- and right air cushion for backrest -3- .
3. 5.3 Remove left air cushion for backrest -2- and right air cushion for backrest -3- from the backrest frame.
Guide out and remove air cushion for backrest together with control valve for air cushion at the backrest frame.
