Removing Rear Trim Panel (Inner, 1/3-Split Folding Rear Seat)
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

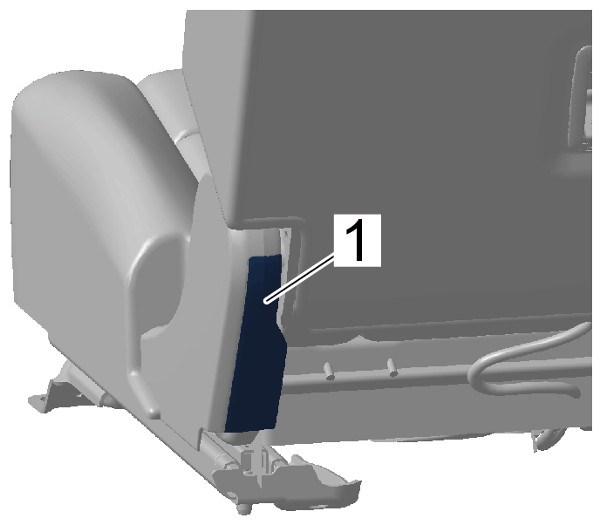

- Unclip rear cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear cover

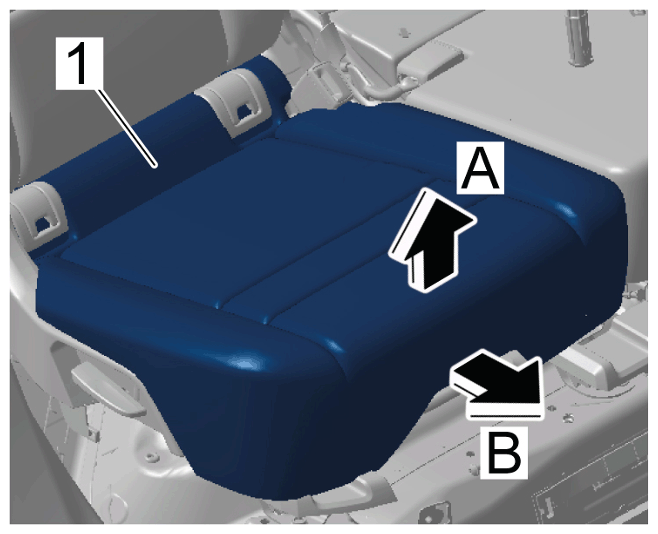

- Lift padding for rear seat (1/3-split folding rear seat) -1-
up slightly -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Padding for rear seat (1/3-split folding rear seat)

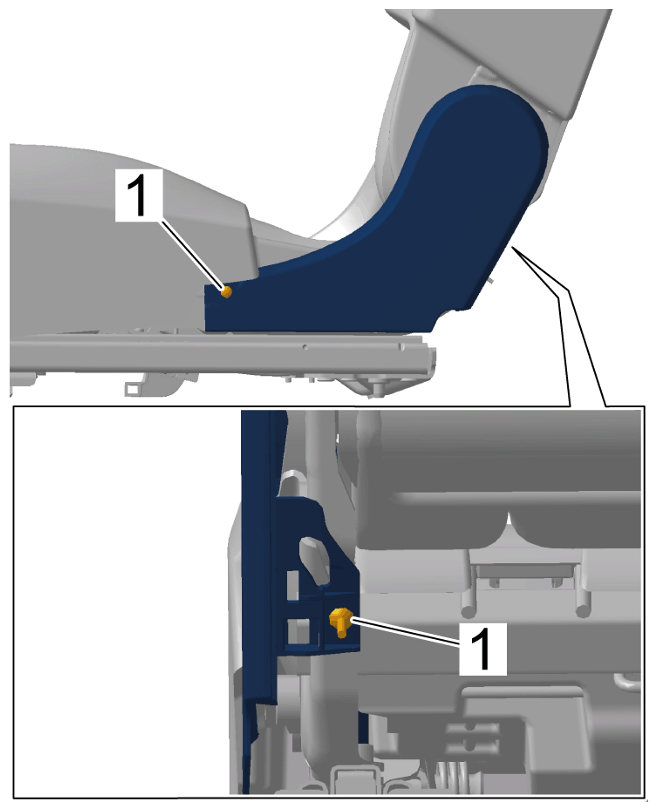

- Remove expansion rivets -1-
and remove rear trim panel (inner, 1/3-split folding rear seat).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Expansion rivets
