Removing Front Seat Trim Panel (Inner)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage rubber straps -1-  and fold over tab on seat cover -2-  .

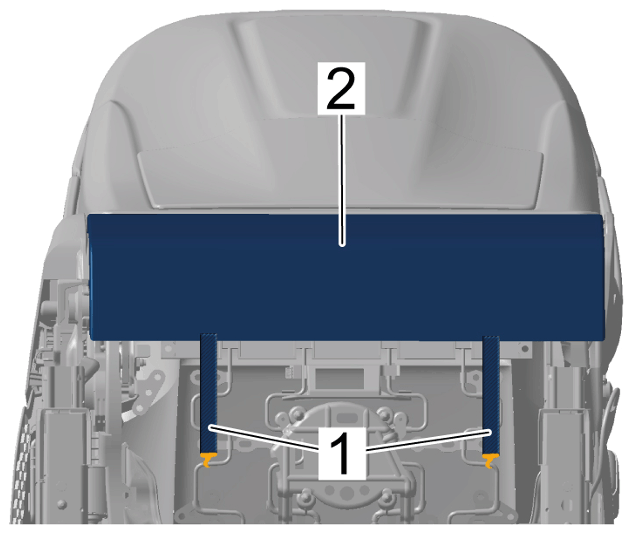

    G15240448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

  2. Remove expanding clip -1-  .

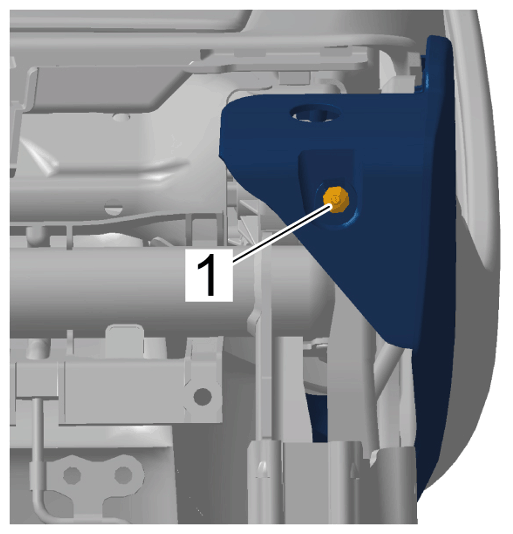

    G15240449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clip

  3. Remove front seat trim panel (inner) -1-  .

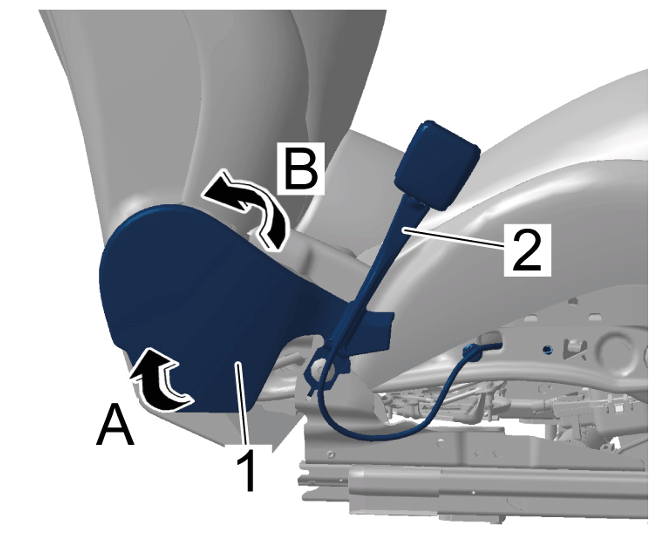

    G15240450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat trim panel (inner)

    1. 3.1 Unclip front seat trim panel (inner) -1-  at the front towards the seat-belt buckle -2-  .
    2. 3.2 Unclip front seat trim panel (inner) -1-  at the rear -arrow A  -.
    3. 3.3 Remove front seat trim panel (inner) -1-  by turning it to the rear -arrow B-  and press the seat-belt buckle -2-  outwards.
