Removing Front Seat Trim Panel (Outer)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

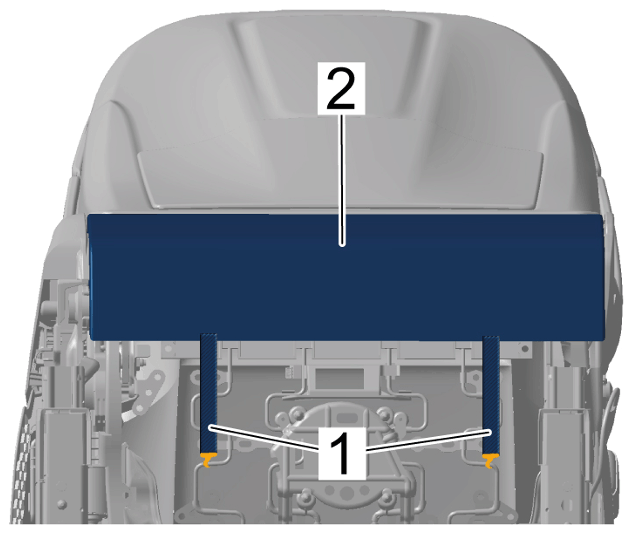

  1. Disengage rubber straps -1-  and fold over tab -2-  on seat cover.
    G15240451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

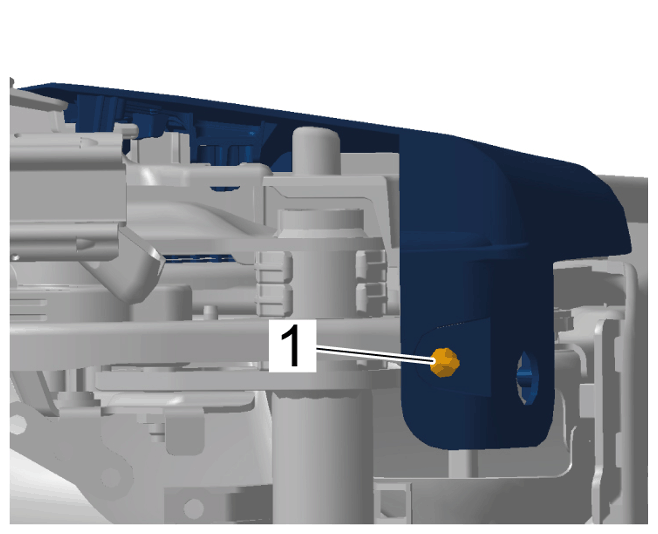

  2. Remove expanding clip -1-  .
    G15240452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clip

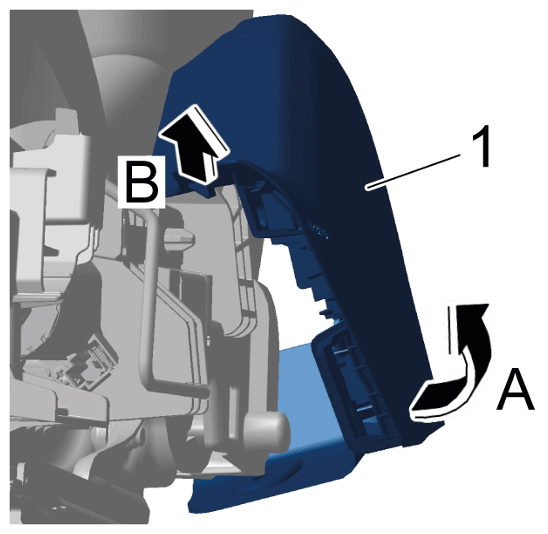

  3. Remove front seat trim panel (outer) -1-  .
    G15240453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat trim panel (outer)

    1. 3.1 Unclip front seat trim panel (outer) -1-  at the bottom -arrow A  -.
    2. 3.2 Unclip front seat trim panel (outer) -1-  at the top -arrow B-  .
    3. 3.3 Remove front seat trim panel (outer) -1-  by turning it to the rear.
