Removing Rear Trim Panel (Inner, 2/3-Split Folding Rear Seat)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

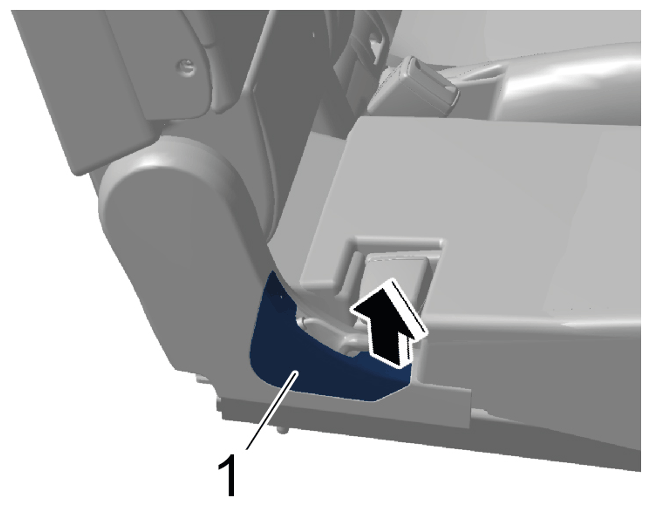

  1. Unclip inner part -1-  at the front -Arrow-  and remove it.
    G15240441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inner part

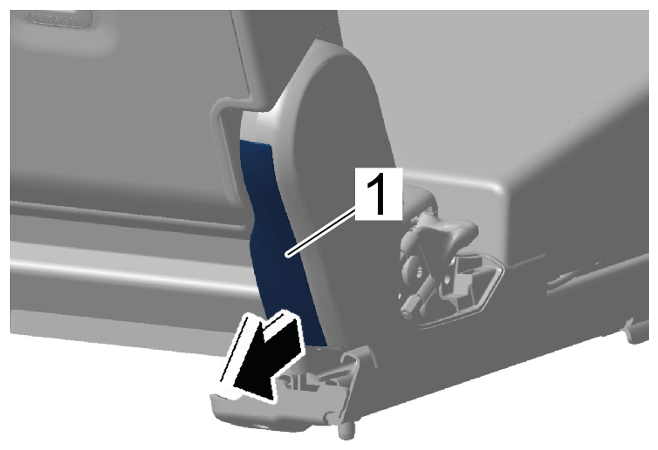

  2. Unclip rear part -1-  at the bottom -Arrow-  and remove it.
    G15240442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear part

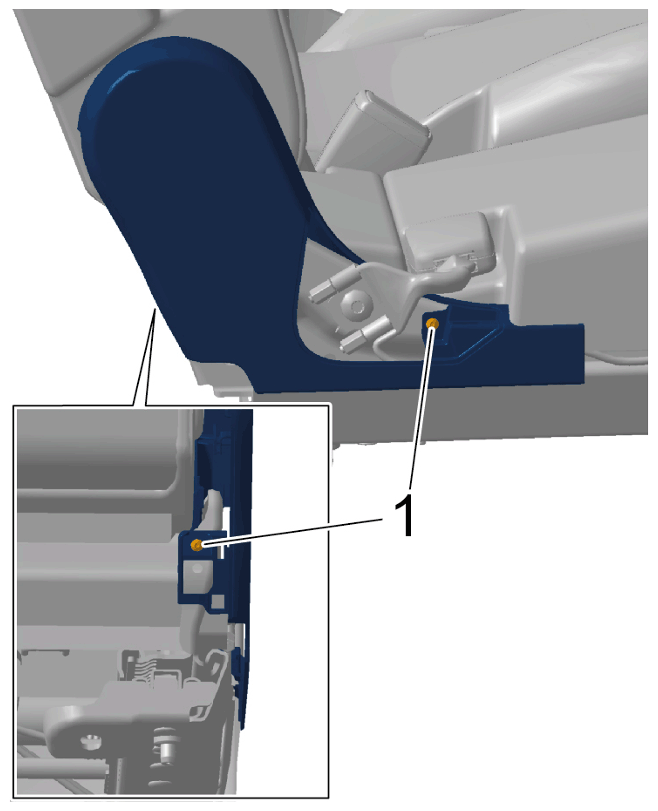

  3. Remove expanding clips -1-  .
    G15240443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clips

  4. Lift padding for rear seat surface (inner, 2/3-split folding rear seat) up slightly.

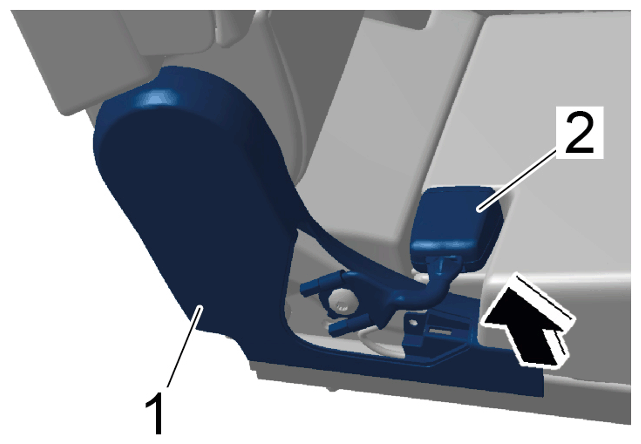

  5. Detach rear trim panel (inner, 2/3-split folding rear seat) -1-  at the front from the seat frame -Arrow-  and move it up slightly.
    G15240444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear trim panel (inner, 2/3-split folding rear seat)

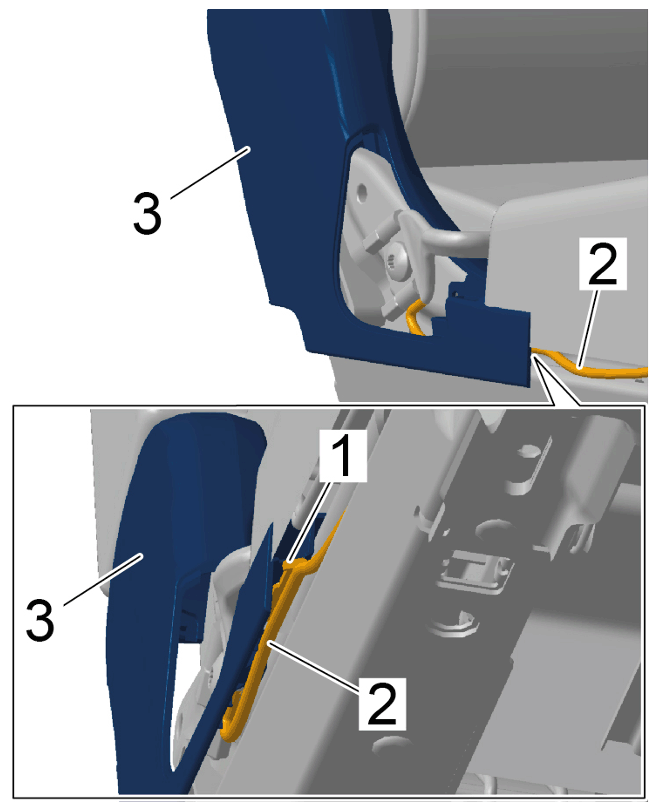

  6. Unclip line bracket -1-  and loosen electric wire harness -2-  from rear trim panel (inner, 2/3-split folding rear seat) -3-  .
    G15240445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

  7. Remove rear trim panel (inner, 2/3-split folding rear seat) -1-  , press rear seat-belt buckle for middle seat -2-  aside and guide it out.
    G15240446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear trim panel (inner, 2/3-split folding rear seat)
