Removing (Outer) Rear Trim Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

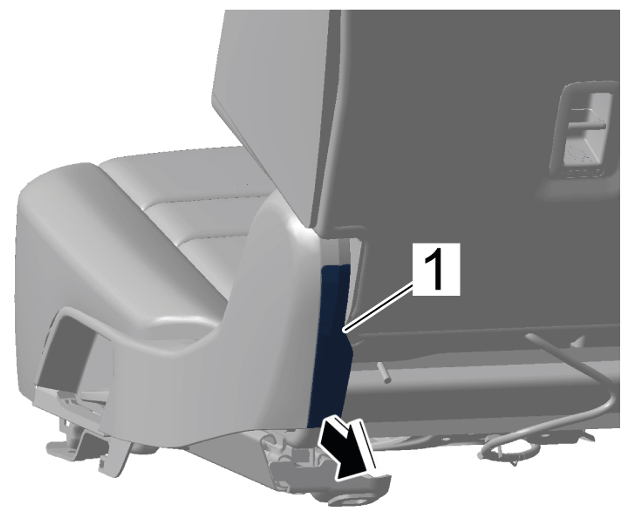

  1. Unclip rear cover -1-  .
    G15240435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

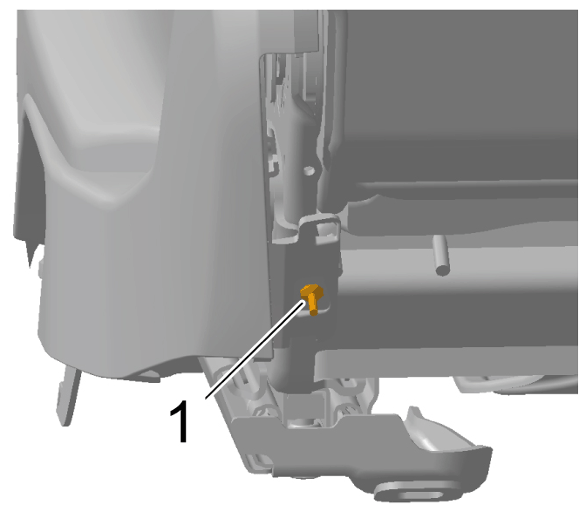

  2. Remove expanding clip -1-  .
    G15240436Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clip

    Information

    CAUTION: Seat backrest will move abruptly forward.

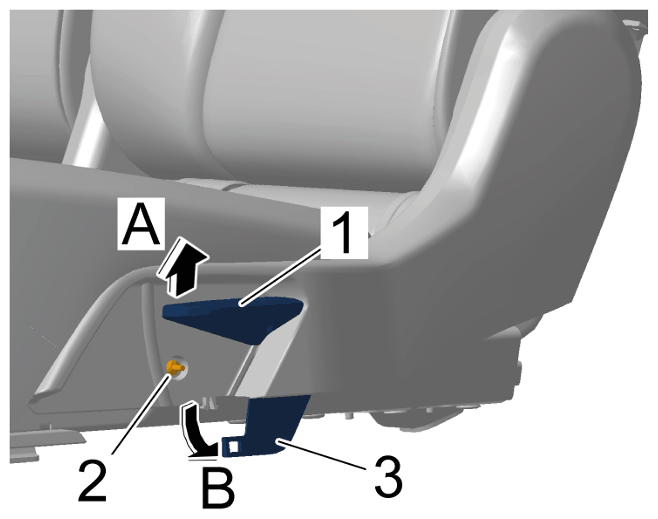

  3. Actuate release lever -1-  (-arrow A-  ), hold it and remove expanding clip -2-  .
    G15240437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Release lever

  4. Release tab -3-  and fold it up -arrow B-  .
    G15240438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

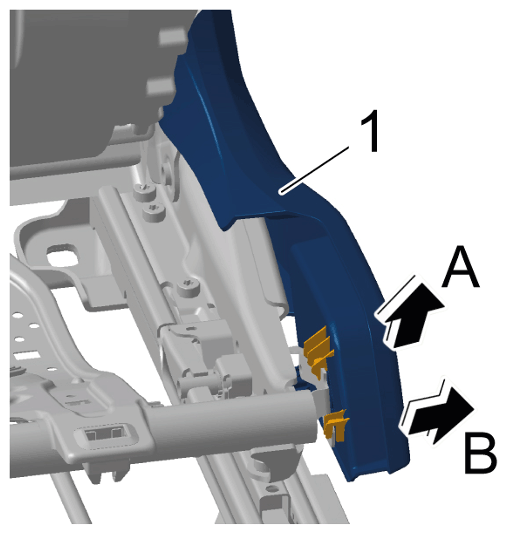

  5. Unclip (outer) rear trim panel -1-  by pulling it upwards -arrow A  - and then remove it by pulling it outwards -arrow B-  . Guide release lever out of the (outer) rear trim panel -1-  at the same time.
    G15240439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear trim panel (outer)
