Removing Air Cushion For Seat
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Removal is shown on the inner air cushion; the method is identical on the outer air cushion.

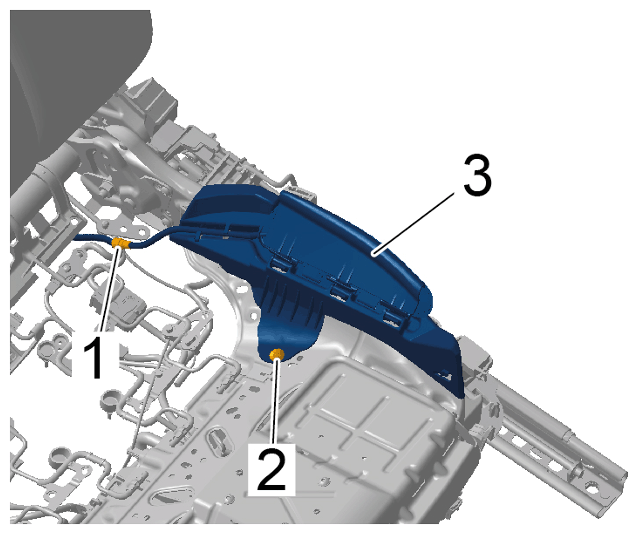

- Release and disconnect hose connection -1-
from air cushion for seat -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Hose connection
- Remove clip -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Clip

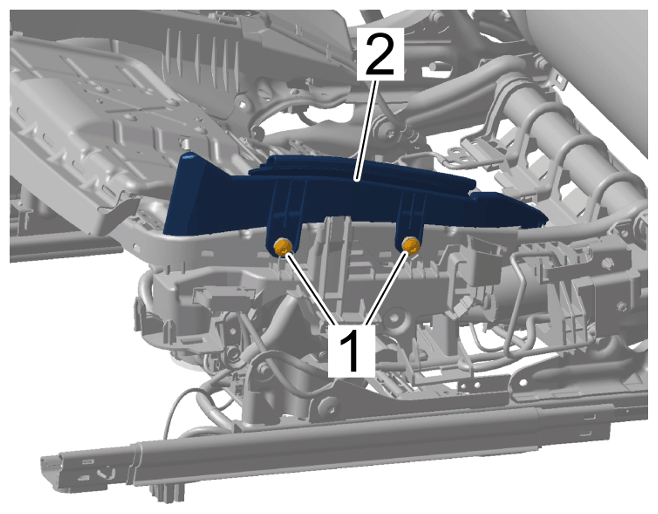

- Unscrew screws -1-
and remove air cushion for seat -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Air cushion for seat
