Removing Front Seat

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of airbag units
  • Triggering of airbag unit.

    System faults can occur.

    → Switch off ignition and remove ignition key or remote control (hand-held transmitter).

    → A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

    → Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

    → Wait 1 minute after disconnecting the battery.

    → Only pull off connector on the triggering unit after the waiting time has elapsed.

    → Make sure that no foreign objects are located in front of the airbag unit during installation.

    → Replace damaged parts during removal.

    → Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

    → Do not position anything on the airbag units.

    → If removed for an extended period, the airbag units must be stored in a safe place.

    → Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

    → Do not expose airbag units to temperatures of more than 90°C.

    → Do not remove the short-circuit spring on the plug-in contacts.

    → Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

    → Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

  1. Move backrest all the way forward. Move front seat all the way up and all the way forward.
  2. Only for front seat on driver's side:

    Move steering wheel to the very front, uppermost position.

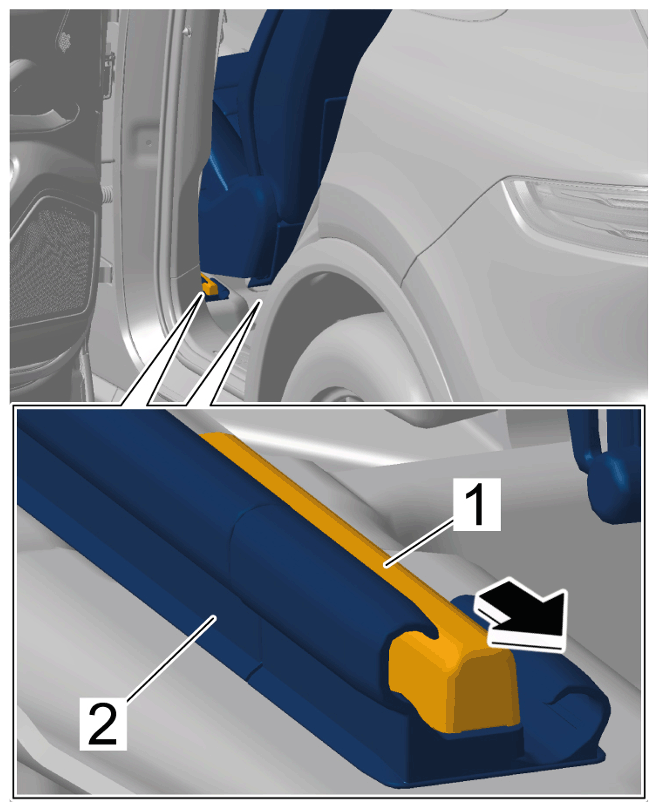

  3. Unclip rear covers -1-  and pull them off the seat rail -2-Arrow-  .
    G15240410Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear covers

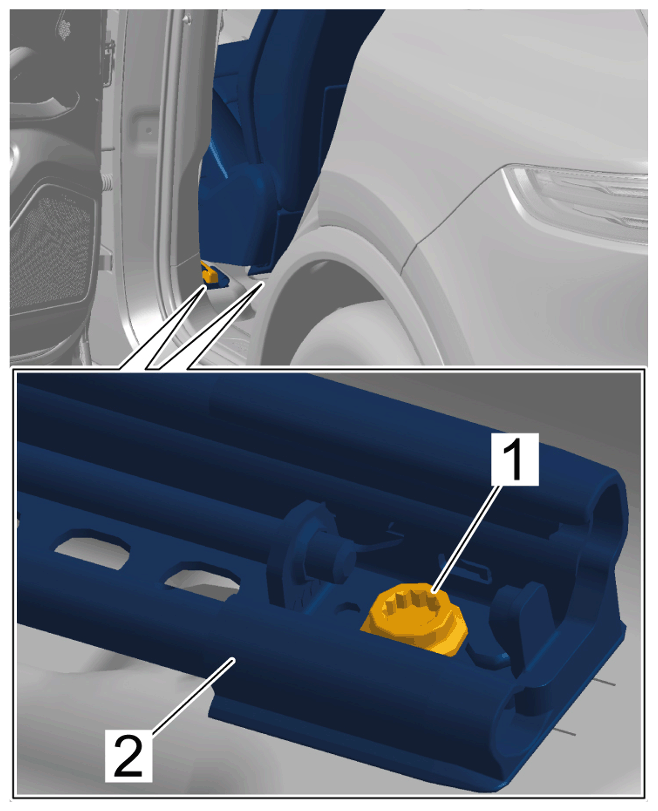

  4. Unscrew fastening screws -1-  on seat rails -2-  .
    G15240411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  5. Move the front seat back fully and lower the rear seat surface.
  6. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).
  7. Disconnect battery ground strap.

    >  WM, 978509 - LOOSENING AND SECURING GROUND STRAP FOR BATTERY

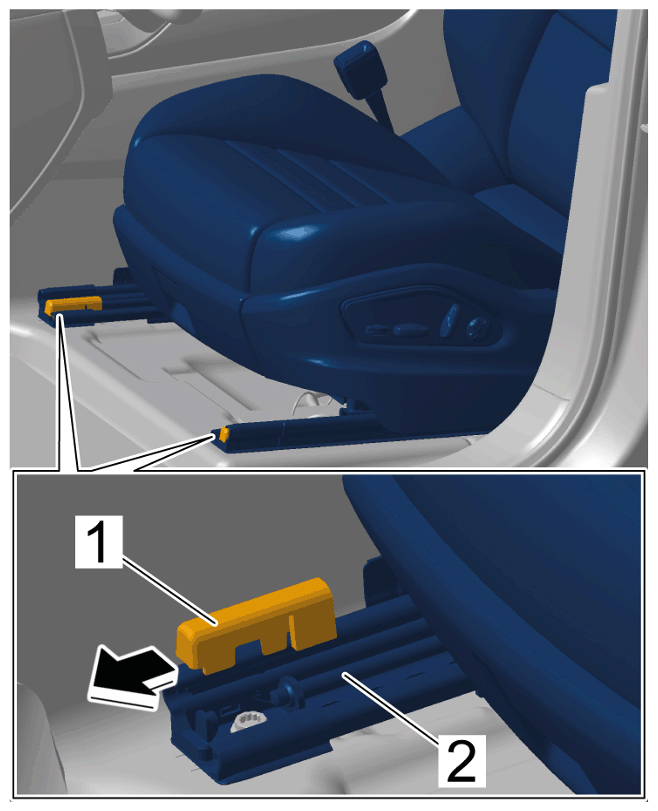

  8. Unclip front covers -1-  and pull them off the seat rails -2-Arrow-  .
    G15240412Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front covers

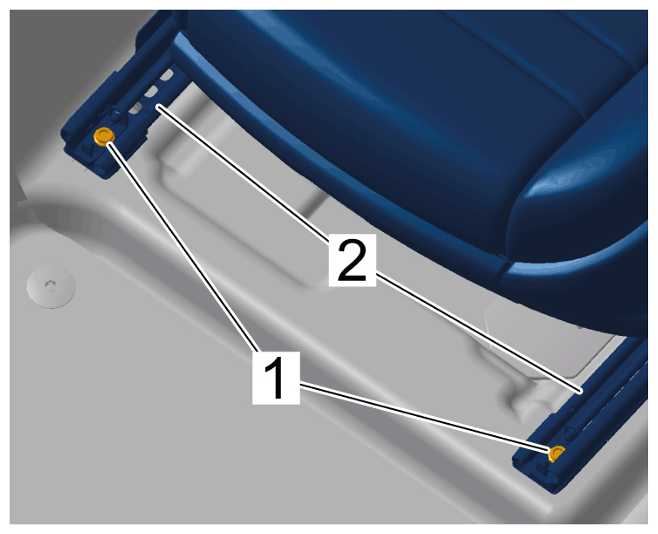

  9. Unscrew fastening screws -1-  on seat rails -2-  .
    G15240413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

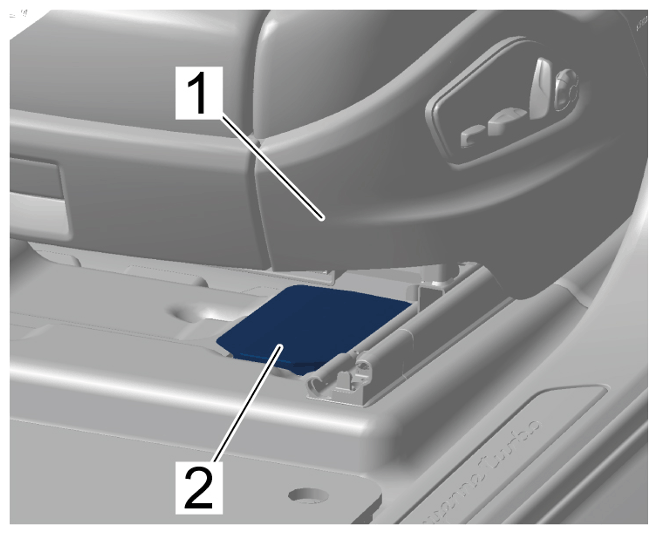

  10. Tilt front seat -1-  to the rear and unclip cover -2-  .
    G15240414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

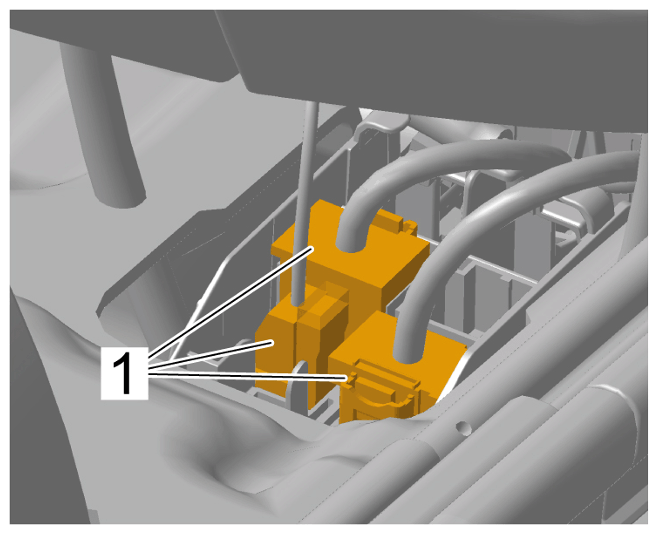

  11. Release and disconnect electric plug connections -1-  .
    G15240415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

    Information

    The help of another person is required.

    Information

    Cover the door sill to prevent damage.

  12. Carefully remove the front seat.
