Installing Roof Sun Blind

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

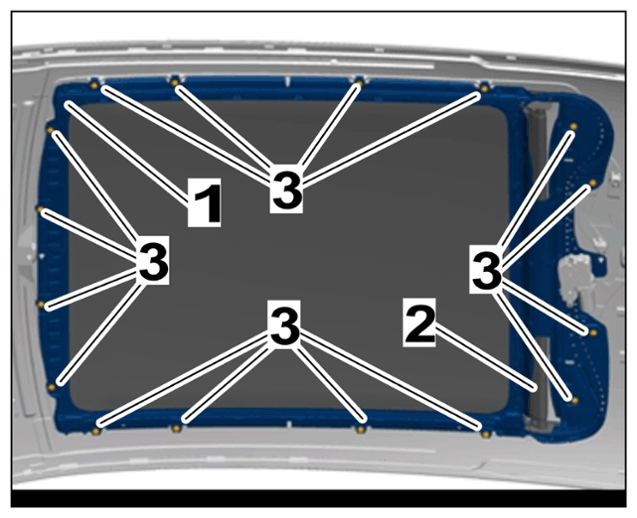

Install frame for roof sun blind -1- with roof sun blind -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Frame for roof sun blind
1. 1.1 Position frame for roof sun blind -1- with roof sun blind -2- .
2. 1.2 Fit and tighten screws on frame for roof sun blind -3- .
  > Tightening torque 6 Nm (4.5 ftlb.)
Only for NAR vehicles - I-no.: ER3

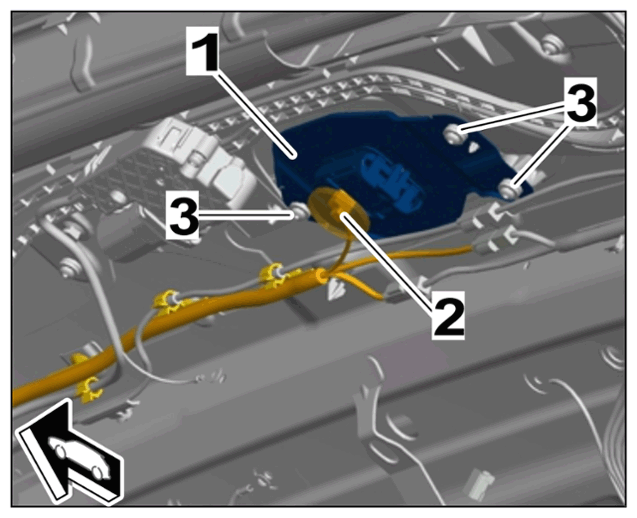

Install SDARS antenna holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

SDARS antenna holder
1. 2.1 Position holder -1- .
2. 2.2 Fit and tighten screws -3- .
  > Tightening torque 6 Nm (4.5 ftlb.)
3. 2.3 Connect and lock electric plug connection on SDARS antenna -2- .

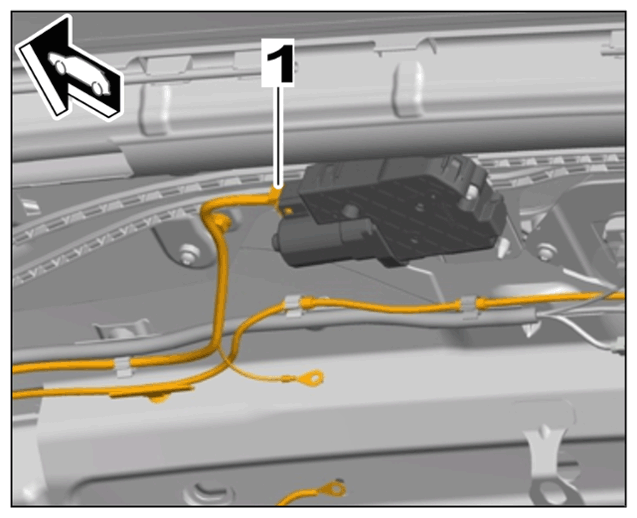

Connect and lock electric plug connection on sun blind motor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind motor
