Removing (Drive) Sun Blind
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen sun blind (drive).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

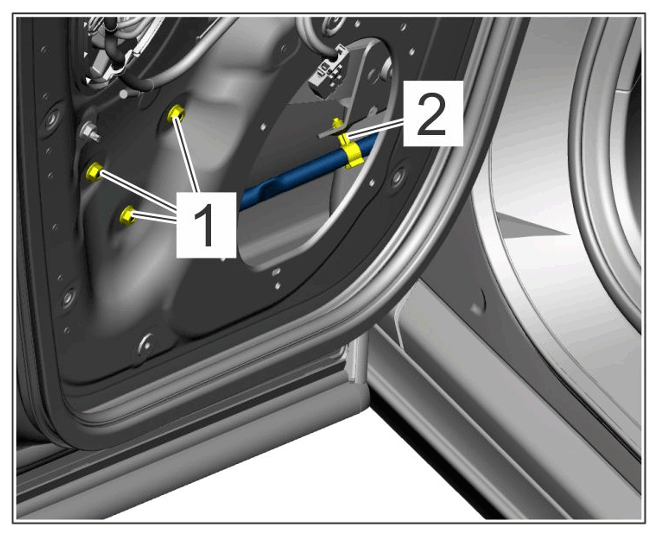

Nuts
- 1.1 Unscrew nuts -1-
.
- 1.2 Unclip holder -2-
.
- Remove sun blind (drive) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

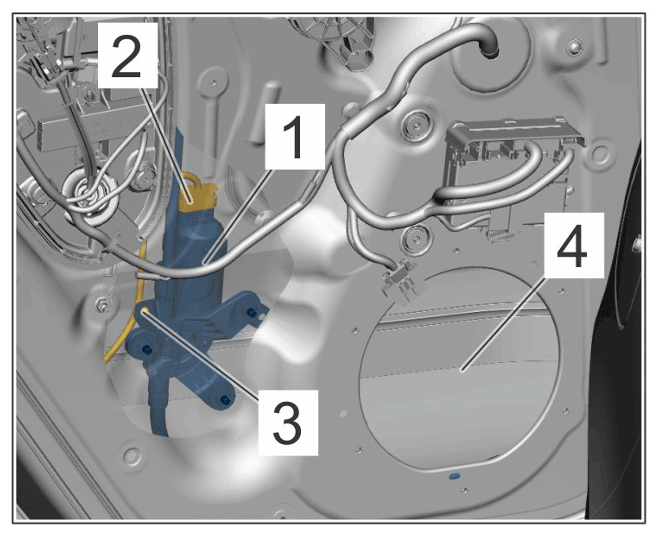

Electric plug connection
- 2.1 Disconnect electric plug connection -2-
.
- 2.2 Unclipping cable holder -3-
.
- 2.3 Guide sun blind (drive) -1-
out through the opening for the loudspeaker -4-
.
