Removing Sun Visor

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

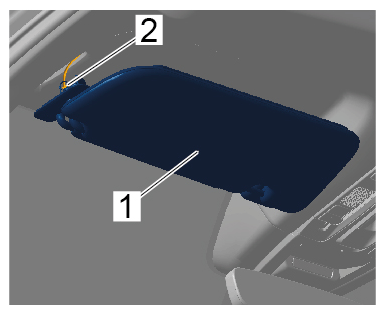

Loosen sun visor -1- from its bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor

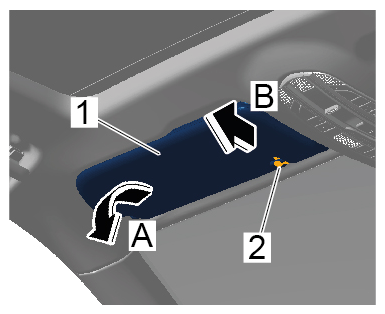

1. 1.1 Fold down sun visor -1- (-arrow A- ) and unclip it from its bracket -2- .
2. 1.2 Swivel out the sun visor -1- (-arrow B- ).

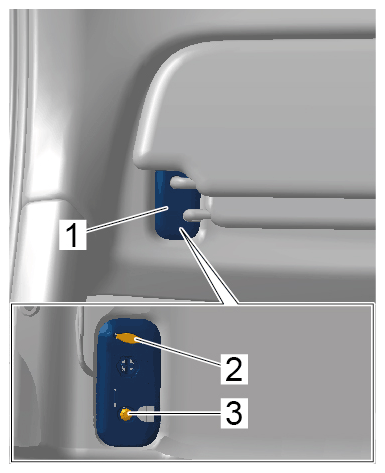

Unclip cover -1- from bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on bracket
Unscrew fastening screw -3- from bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for bracket
Unclip cover -1- from the sun visor base using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on sun visor base
Open clamp -2- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamp on sun visor base
Unscrew fastening screw -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw
Unclip sun visor -1- from the headliner and release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor to headliner
