Removing Front Ashtray
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

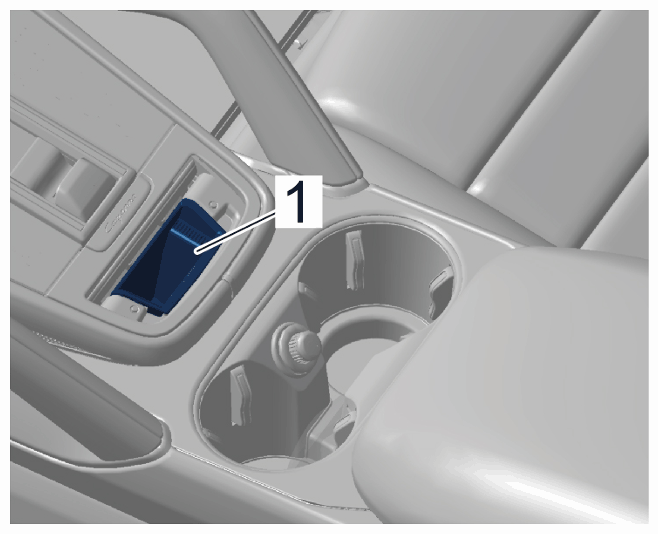

- Pull out ashtray pot -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Ashtray pot

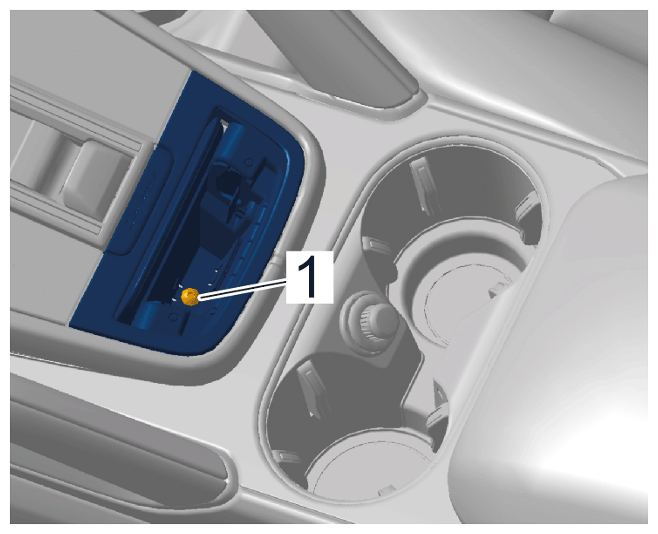

- Unscrew screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw

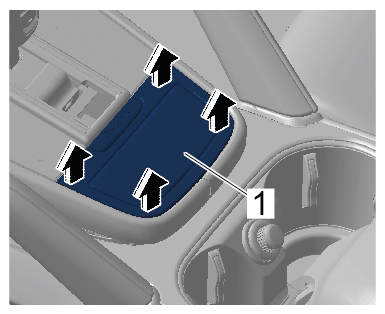

- Unclip front ashtray -1-
using an assembly wedge -Arrows-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front ashtray
