Removing Upper Part Of Centre Console Cover
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

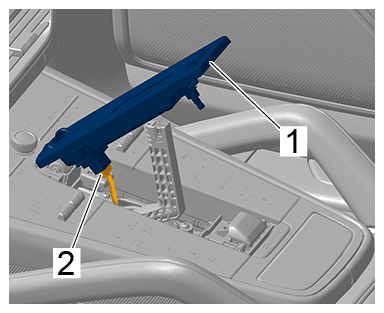

- Unclip upper part of centre console cover -1-
by pulling it upwards and release and disconnect electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Upper part of centre console cover

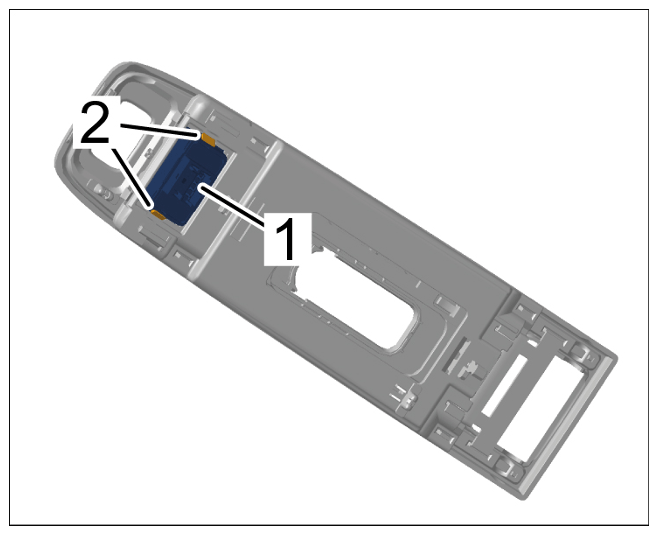

- Only when replacing components:
Release clamps -2-
and unclip hazard warning light switch -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Hazard warning light switch
