Removing Upper Part Of Centre Console

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

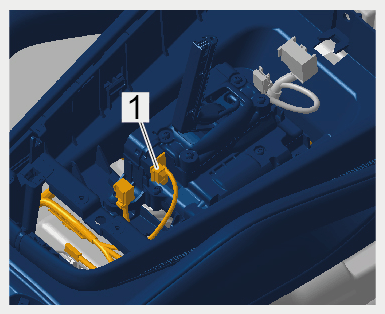

Release and disconnect electric plug connection -1- at selector support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

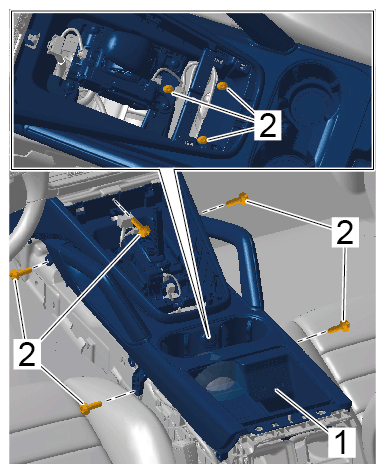

Unscrew fastening screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Information

The number of electric plug connections will vary depending on equipment.

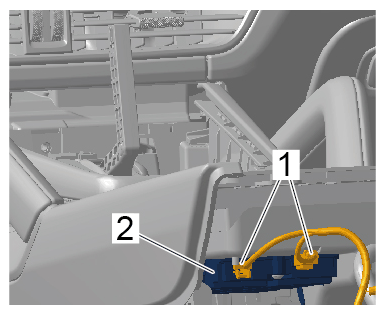

Release and disconnect electric plug connections -1- on Comfort telephony control unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

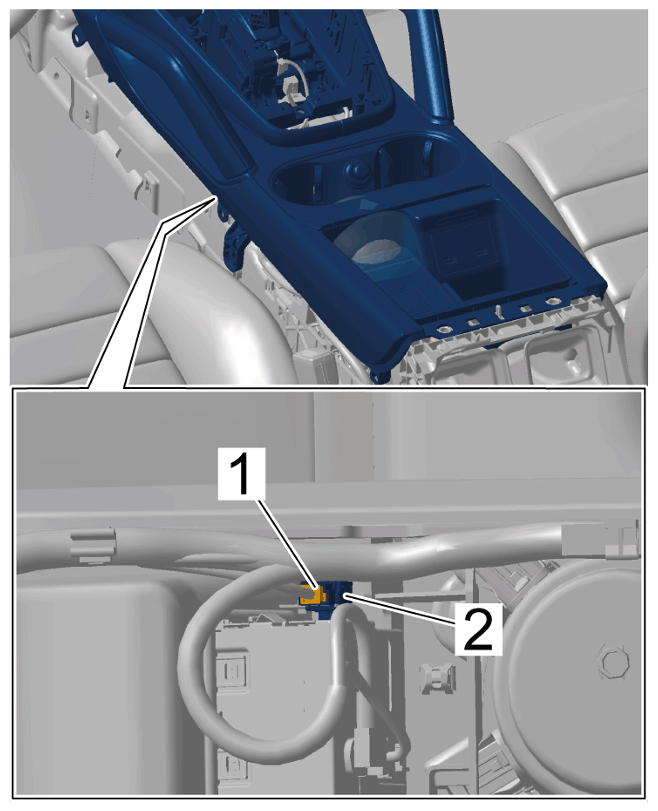

Release and disconnect electric plug connection -1- on Kessy antenna.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on Kessy antenna

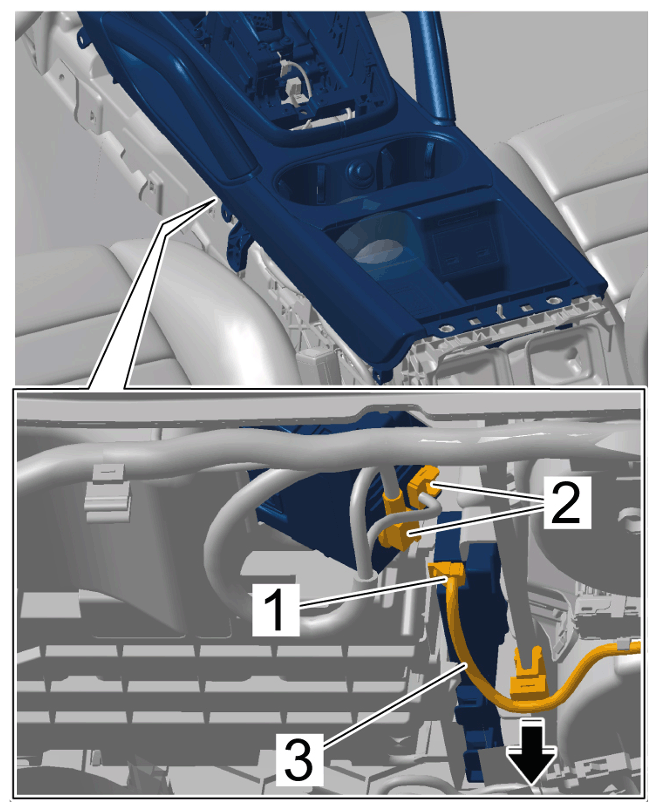

Release and disconnect electric plug connections -2- at the USB interface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection at USB interface
Unclip electric wire harness -3- from upper part of centre console -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
Release and disconnect electric plug connection -1- on package box lighting -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for package box lighting

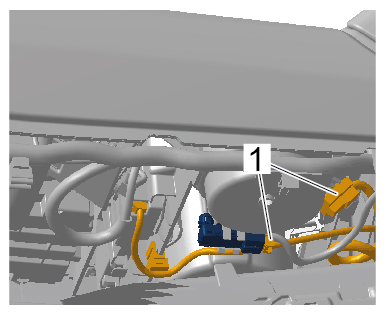

Release and disconnect electric plug connections -1- for lighting on package box.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

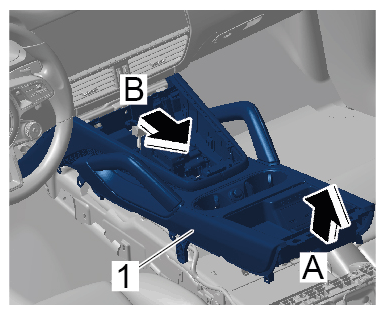

Lift up upper part of centre console -1- at the rear as far as possible -arrow A- and pull it out to the rear -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of centre console
Remove upper part of centre console.
