Technical Values
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Nuts securing rear centre console to bracket | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||

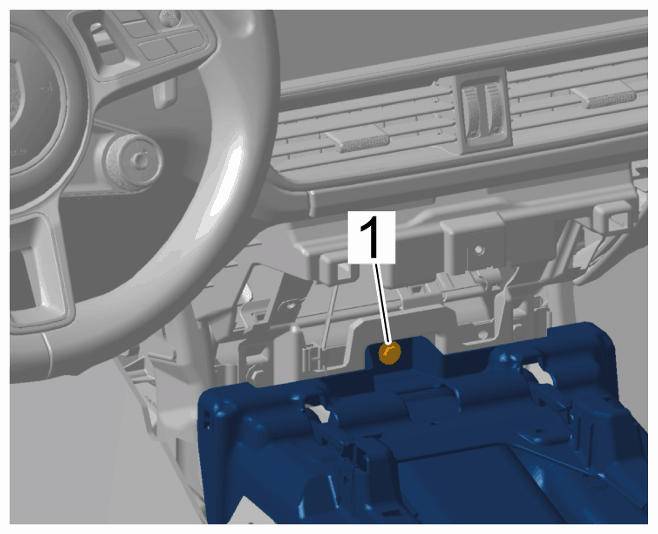

| Screw securing front centre console to instrument panel | Item 1 | Tightening torque | 4 Nm (3 ftlb.) | ||
|
Screw |
|||||

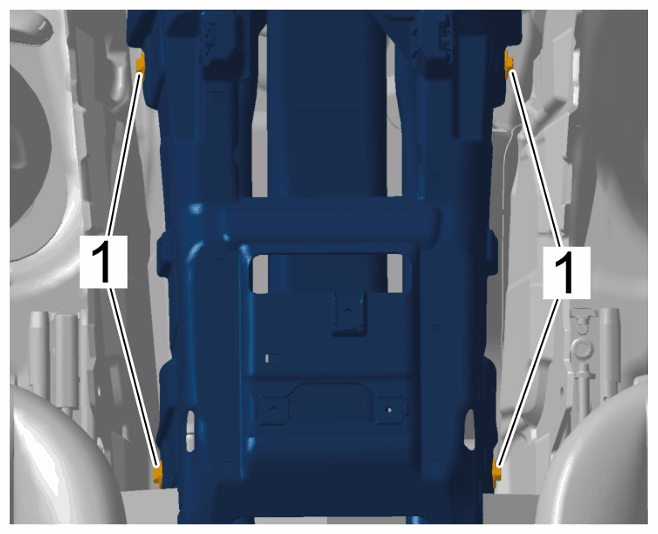

| Screws securing centre console to bracket | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Screws |
|||||
