Removing Centre Console

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

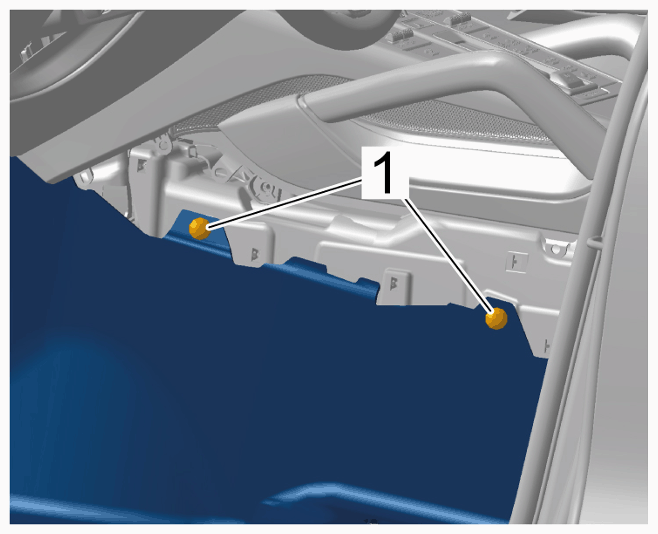

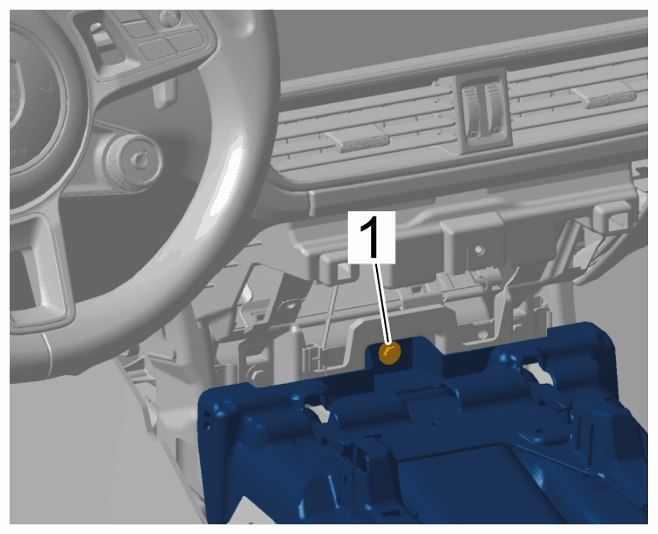

Unclip fastening plug -1- on the centre console.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening plug
Unclip fastening plug -1- at the centre console.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening plug

Disconnect electric wire harness to the left of the centre console.

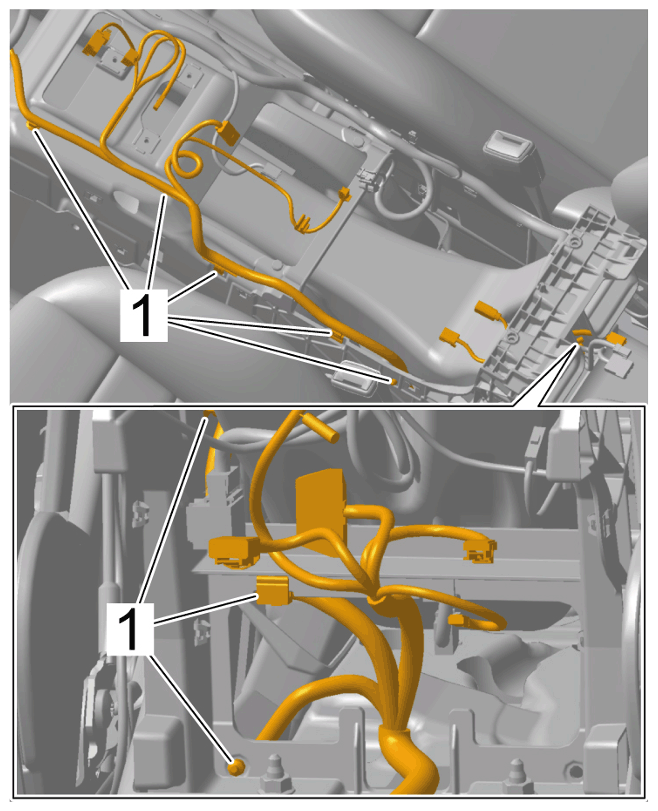

3.1 Unclip clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips on electric wire harness, left

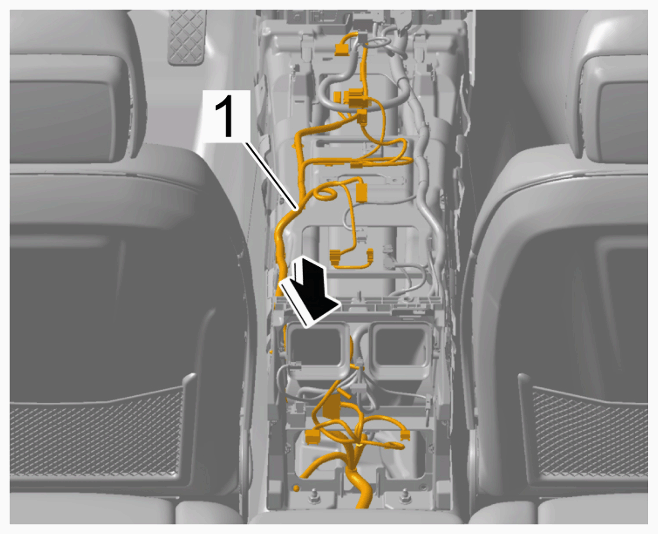

3.2 Guide electric wire harness at the left -1- to the rear through the centre console -arrow- and set it down in the rear footwell.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness, left

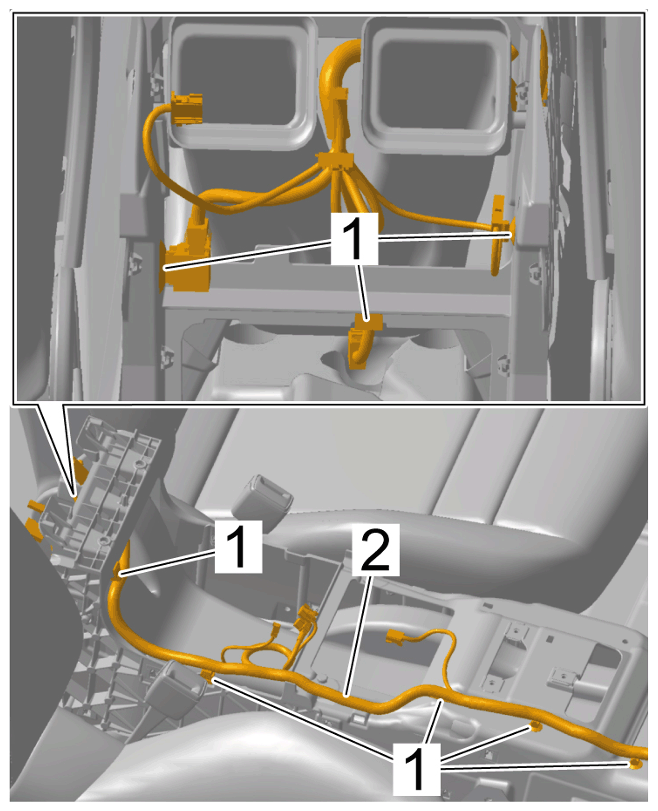

Disconnect electric wire harness to the right of the centre console.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips on electric wire harness, right
1. 4.1 Unclip clips -1- .
2. 4.2 Remove electric wire harness at the right -2- from the centre console and set it down in the passenger footwell.

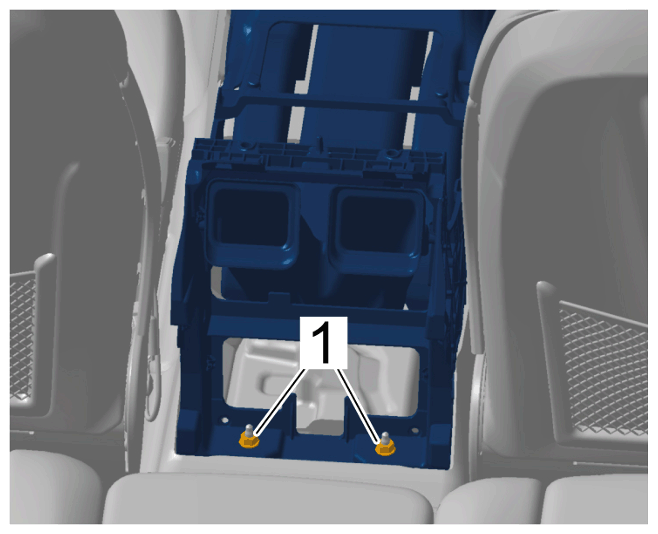

Unscrew nuts -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

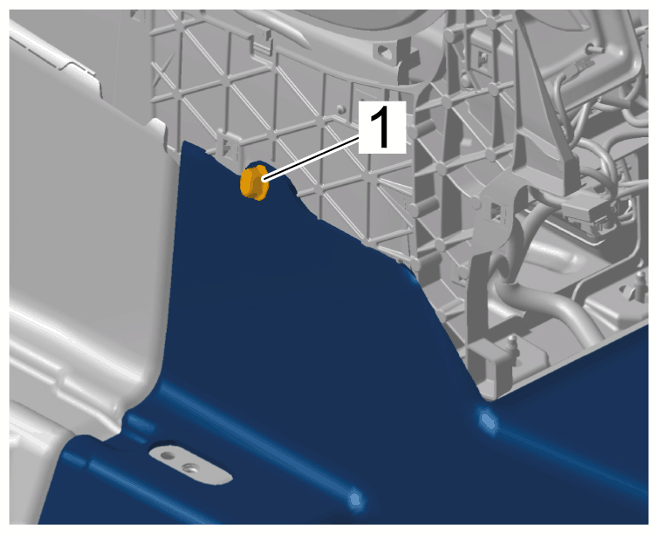

Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Press carpeted floor at the sides of the centre console aside.

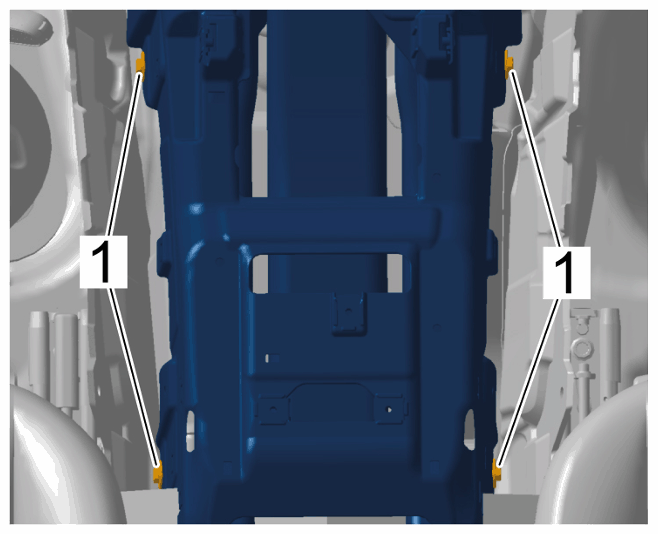

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

Information

The help of another person is required.

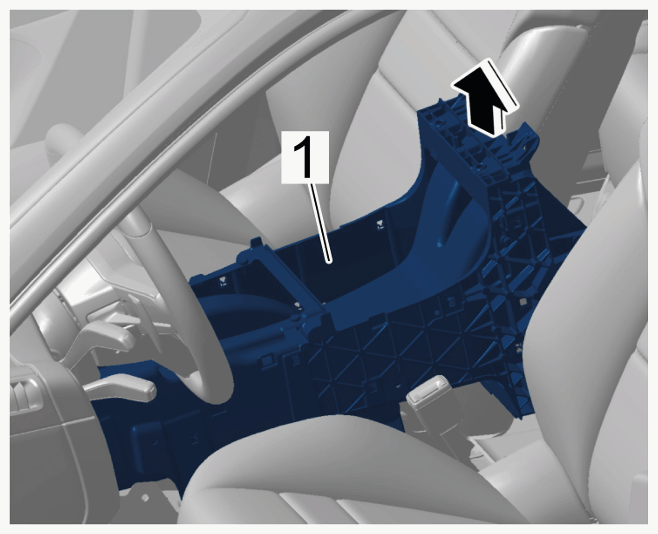

Lift centre console -1- at the rear -Arrow- and remove it from the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear centre console
