Removing Glove Box

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

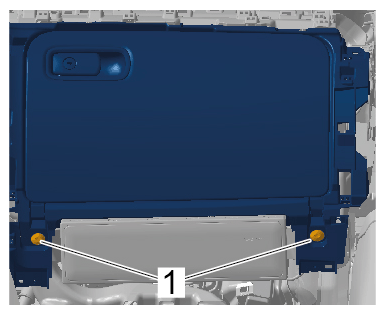

One screw is behind the central computer in the glove box.

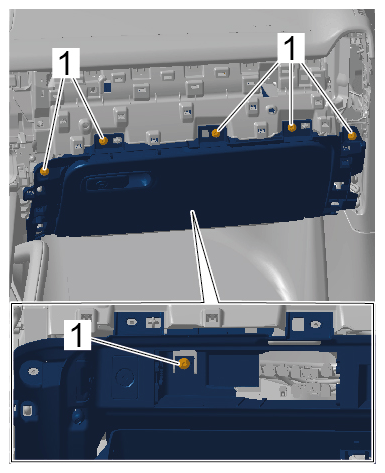

Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for glove box
Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for glove box

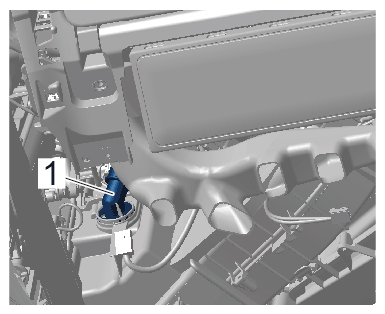

Release air duct -1- and pull it off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning line
Carefully pull out glove box and lower it slightly.

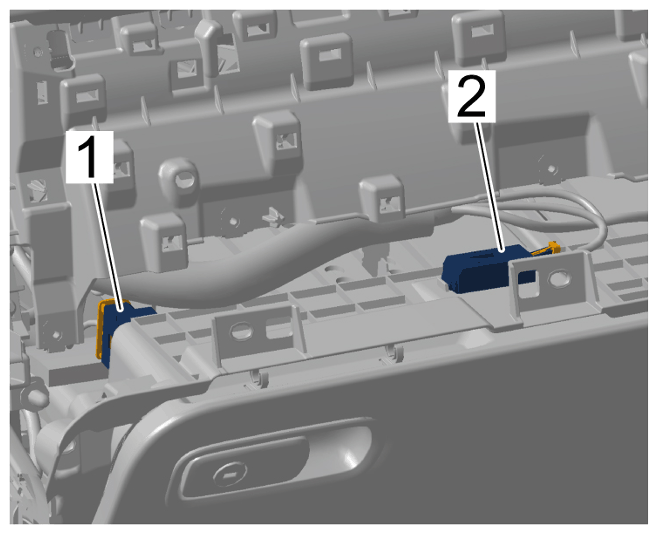

Release and disconnect electric plug connection on the airbag switch -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Release and disconnect electric plug connection for glove box lighting -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

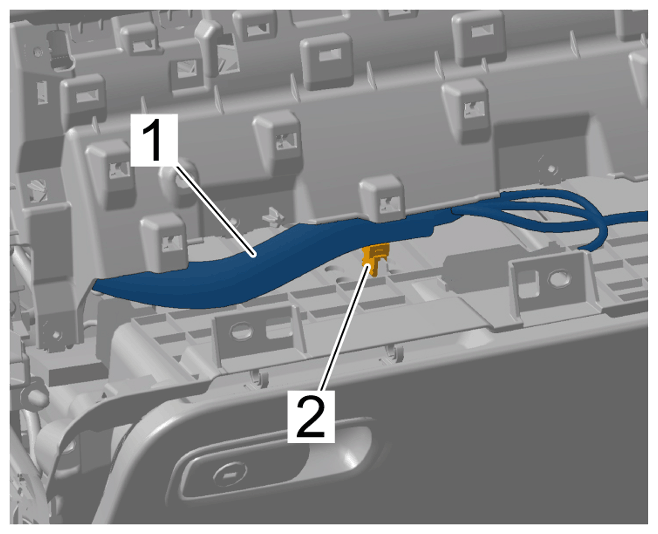

Unclip electric line -1- with clip -2- and guide electric line -1- out of the slot.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

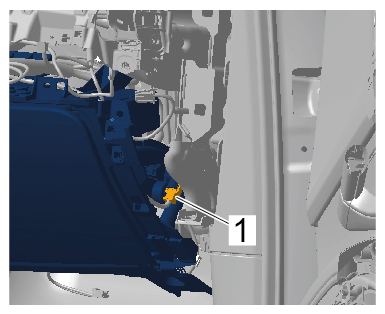

Release and disconnect electric plug connection -1- on damper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Remove glove box.
