Installing Glove Compartment Lock

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

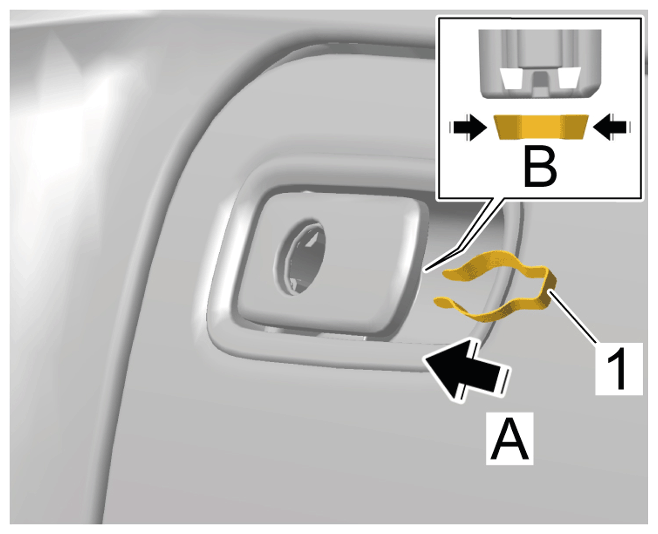

Install safety clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Safety clips
1. 1.1 Lift the handle.
2. 1.2 Align safety clip -1- with the wide opening in an upward direction -arrow B- .
3. 1.3 Insert safety clip -1- into the handle -arrow A- .

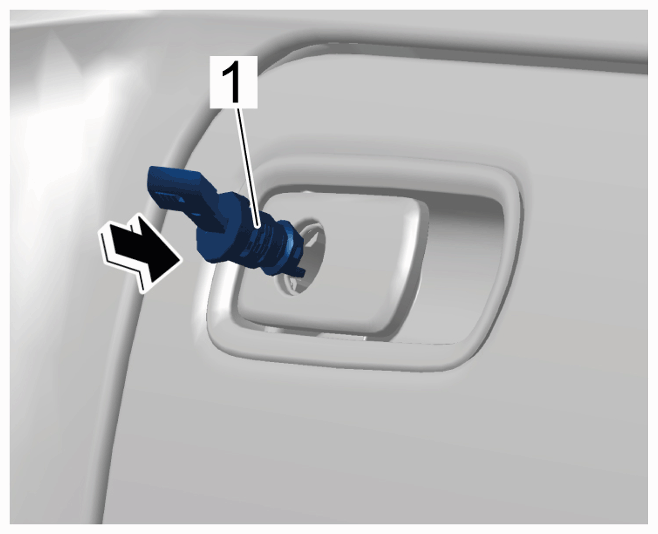

Insert glove compartment lock -1- with emergency key inserted into the handle until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Glove compartment lock
Carry out a function test with the glove compartment lid open.
