Removing Inner Door Sill Trims

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

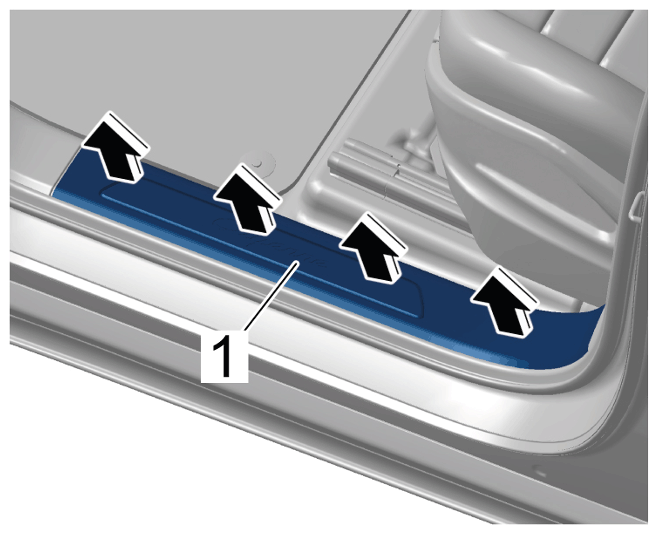

Unclip front inner door sill trim -1- using a suitable tool -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front inner door sill trim

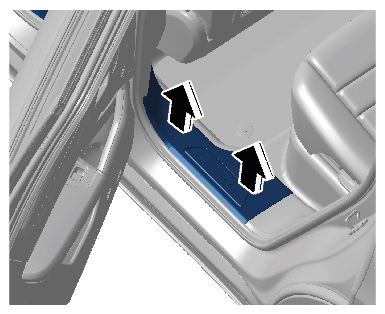

Unclip rear inner door sill trim using a suitable tool -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear inner door sill trim
Remove inner door sill trim -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner door sill trim

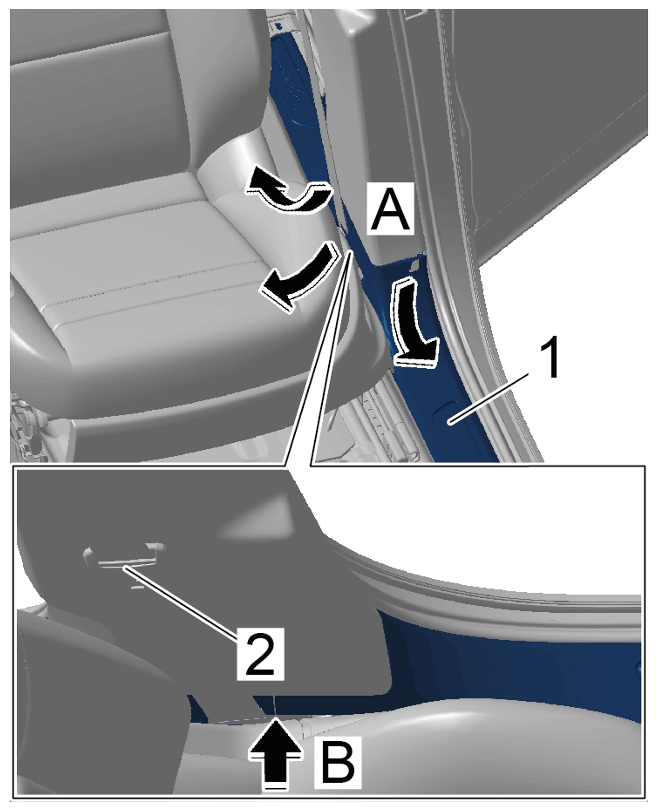

1. 3.1 Unclip inner door sill trim -1- from the B-pillar trim panel by pulling it downwards -arrows A- .
2. 3.2 Unscrew inner door sill trim -1- from the B-pillar trim panel inwards and remove it.
3. 3.3 Guide seat belt -2- out of the opening -B - on the inner door sill trim -1- .
4. 3.4 Remove inner door sill trim -1- .
