Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

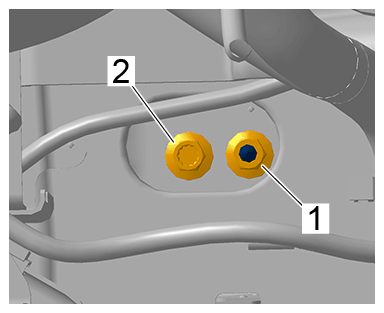

Door hinges to bodyshell	Items 1 and 2	Tightening torque	32 Nm (24 ftlb.)<br/>+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom nut

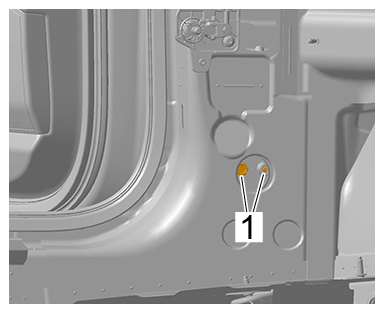

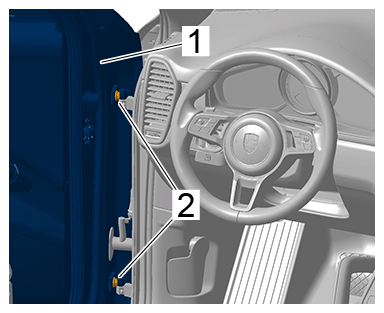

Screws securing door hinges to door	Item 1	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge
