Removing Striker Pin

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the striker pin -1-  .

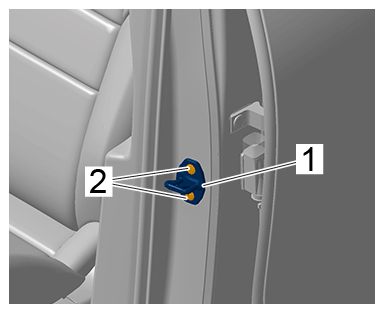

    G15261087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg

    Mark position of striker pin (lock peg) -1-  .

    Unscrew fastening screws -2-  .

    Remove the striker pin -1-  .
