Installing Striker Pin

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install lock peg -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

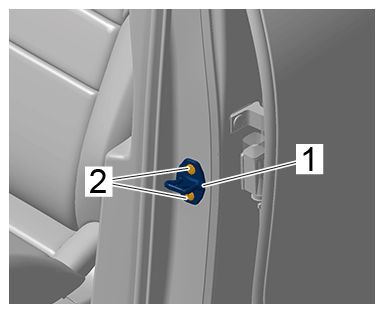

Lock peg

Fit striker pin (lock peg) -1- and align according to the marking.

Screw in -2- fastening screws.

Carefully close the door and check that the lock peg -1- is positioned correctly with respect to the door lock.

Re-align lock peg -1- if necessary.

Tighten fastening screws to > Tightening torque 25 Nm (19 ftlb.) .
Remove the markings you made.
Check gap dimensions and adjust the lock peg -1- if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg
