Adjusting Lock Peg (Striker Pin)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting element for striker pin

CAUTION:

The striker pin can be adjusted by changing the plasticity of the adjusting element in the B-pillar.
The setting is retained when the striker pin is removed.

Move lock peg -1- outwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

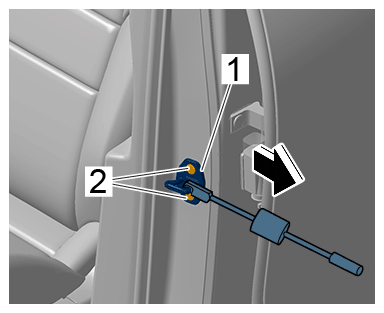

Slide hammer

Loosen the fastening screws -2- .

Move lock peg -1- outwards using > VAS 6965 - slide hammer kit .
Adjust the striker pin -1- by moving it to the rear, down and up.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

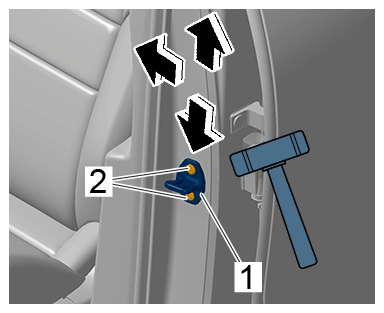

Plastic hammer

Move the lock peg -1- to the required position using a plastic hammer.

Carefully close the door and check that the lock peg -1- is positioned correctly with respect to the lock.

Tighten fastening screws -2- to > Tightening torque 25 Nm (19 ftlb.) .
