Technical Values
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

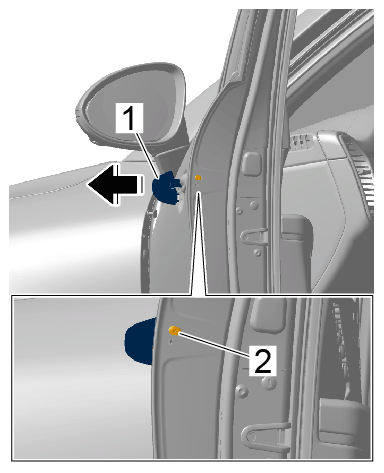

| Adjusting screw for door handle in service position |
Item 2 |
Tightening torque |
3.5 Nm (2.6 ftlb.) |
|
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle in service position |
|
|
|
|
|

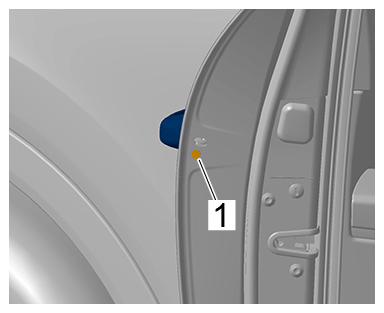

| Screw on door handle |
Item 1 |
Tightening torque |
2.5 Nm (1.9 ftlb.) |
|
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw |
|
|
|
|
|
