Removing Lateral Retaining Strip

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side retaining strip -3-

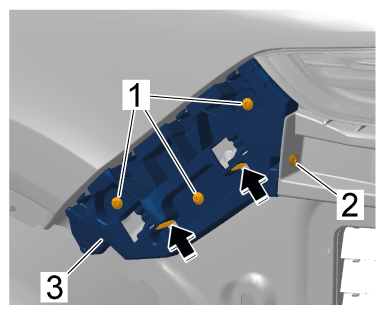

    G15238508Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side retaining strip

    1. 1.1 Unscrew and remove screws -1 and 2-  .
    2. 1.2 Unclip side retaining strip -3-  at the retaining lugs -Arrows-  and remove it.
